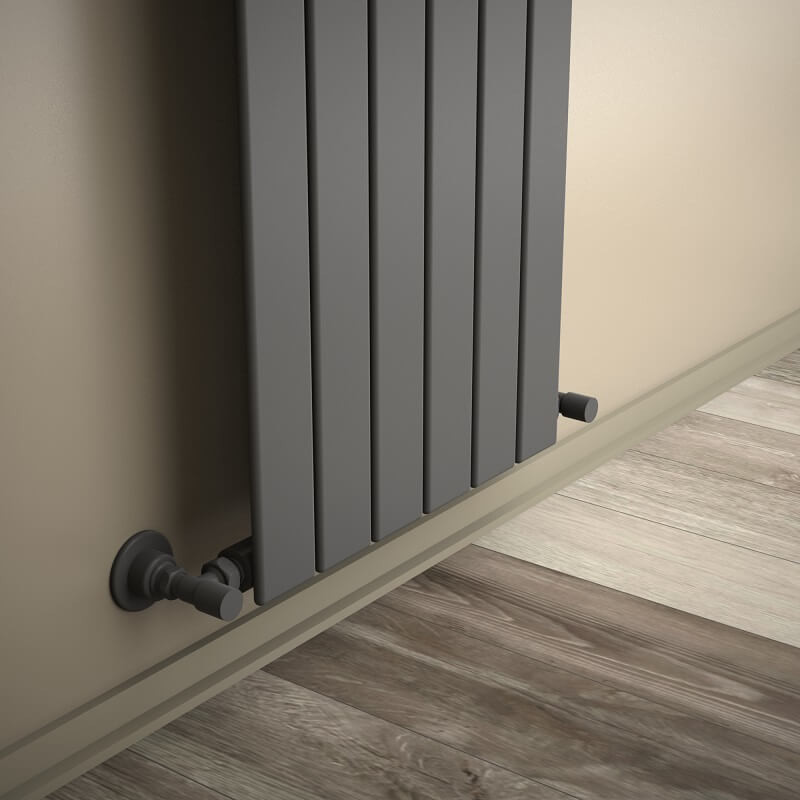

Type 10V Decorative Radiator 2200x440 Anthracite

TECHNICAL INFORMATION

• Model = 10V

• Material =Steel

• Height=2200 mm

• Width=440 mm

• Color/Coating=Anthracite

• Number of Sections=6 Pieces

• Total Number of Profiles (Front + Back)=6+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=7,3 lt

• Weight=21,9 kg

• Boxed Weight=25,11 kg

• Box Size=48x225x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =530 mm

• Standard Entry2 =2150 mm

• Standard Entry Cross =530 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 879 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1108Kcal/h

• Heat Output 55/45-20° ?t=30°C=451 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1022 Watt

• Heat Output 90/70-20°?t=60°C=1288 Watt

• Heat Output 55/45-20°?t=30°C=524 Watt


Btu

• Heat Output 75/65-20°?t=50°C=3488 Btu

• Heat Output 90/70-20°?t=60°C=4395 Btu

• Heat Output 55/45-20°?t=30°C=1786 Btu
