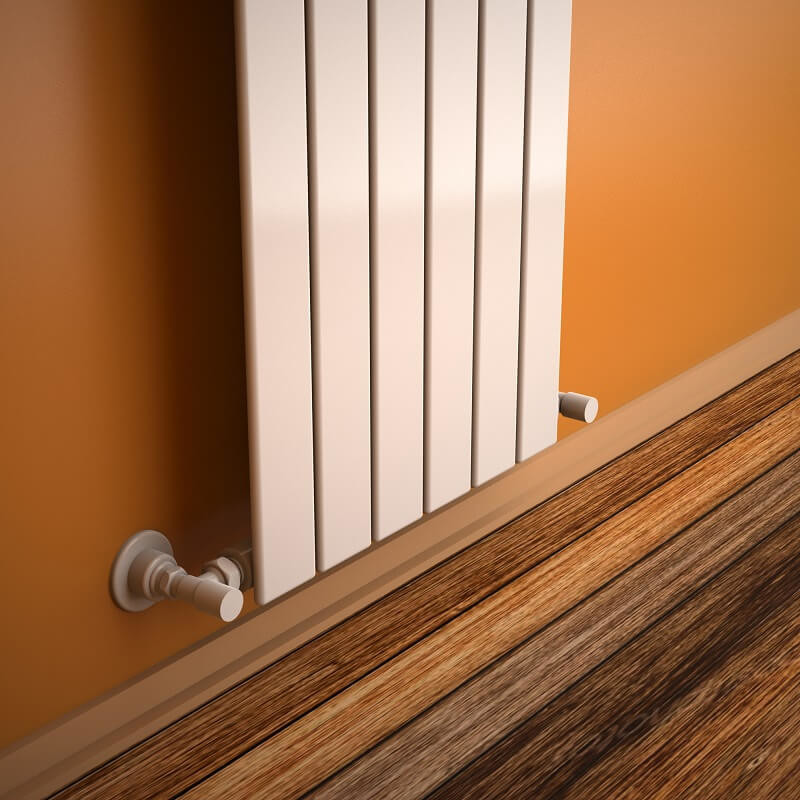

Type 10V Decorative Radiator 2000x440 White

TECHNICAL INFORMATION

• Model = 10V

• Material =Steel

• Height=2000 mm

• Width=440 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=6 Pieces

• Total Number of Profiles (Front + Back)=6+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=6,7 lt

• Weight=20 kg

• Boxed Weight=22,94 kg

• Box Size=48x205x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =530 mm

• Standard Entry2 =1950 mm

• Standard Entry Cross =530 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 816 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1029Kcal/h

• Heat Output 55/45-20° ?t=30°C=418 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=948 Watt

• Heat Output 90/70-20°?t=60°C=1195 Watt

• Heat Output 55/45-20°?t=30°C=486 Watt


Btu

• Heat Output 75/65-20°?t=50°C=3235 Btu

• Heat Output 90/70-20°?t=60°C=4077 Btu

• Heat Output 55/45-20°?t=30°C=1657 Btu
