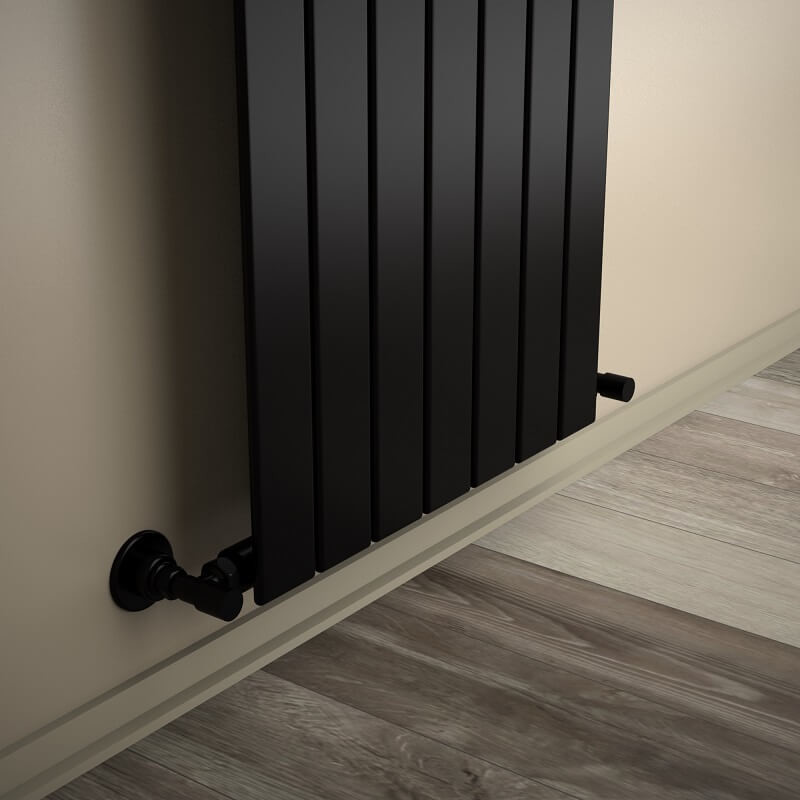

Type 10V Decorative Radiator 1800x514 Matte Black

TECHNICAL INFORMATION

• Model = 10V

• Material =Steel

• Height=1800 mm

• Width=514 mm

• Color/Coating=Matte Black RAL9005

• Number of Sections=7 Pieces

• Total Number of Profiles (Front + Back)=7+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=7,1 lt

• Weight=21,1 kg

• Boxed Weight=24,18 kg

• Box Size=56x185x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =604 mm

• Standard Entry2 =1750 mm

• Standard Entry Cross =604 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 875 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1103Kcal/h

• Heat Output 55/45-20° ?t=30°C=448 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1017 Watt

• Heat Output 90/70-20°?t=60°C=1282 Watt

• Heat Output 55/45-20°?t=30°C=521 Watt


Btu

• Heat Output 75/65-20°?t=50°C=3471 Btu

• Heat Output 90/70-20°?t=60°C=4374 Btu

• Heat Output 55/45-20°?t=30°C=1778 Btu
