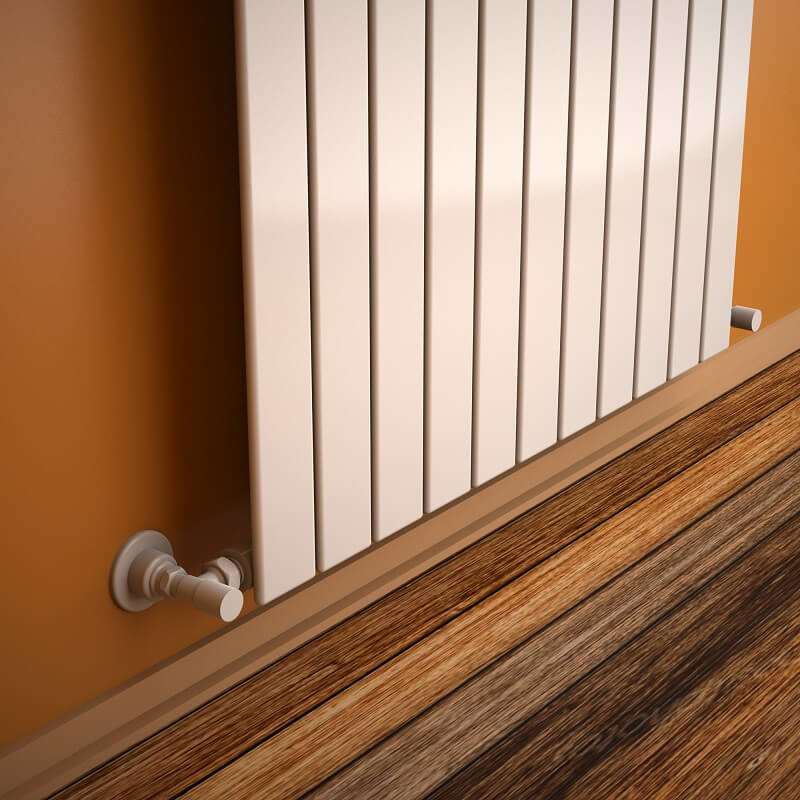

Type 10V Decorative Radiator 1600x810 White

TECHNICAL INFORMATION

• Model = 10V

• Material =Steel

• Height=1600 mm

• Width=810 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=11 Pieces

• Total Number of Profiles (Front + Back)=11+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=10,1 lt

• Weight=29,7 kg

• Boxed Weight=33,89 kg

• Box Size=85x165x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =900 mm

• Standard Entry2 =1550 mm

• Standard Entry Cross =900 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1248 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1573Kcal/h

• Heat Output 55/45-20° ?t=30°C=639 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1451 Watt

• Heat Output 90/70-20°?t=60°C=1829 Watt

• Heat Output 55/45-20°?t=30°C=743 Watt


Btu

• Heat Output 75/65-20°?t=50°C=4951 Btu

• Heat Output 90/70-20°?t=60°C=6239 Btu

• Heat Output 55/45-20°?t=30°C=2535 Btu
