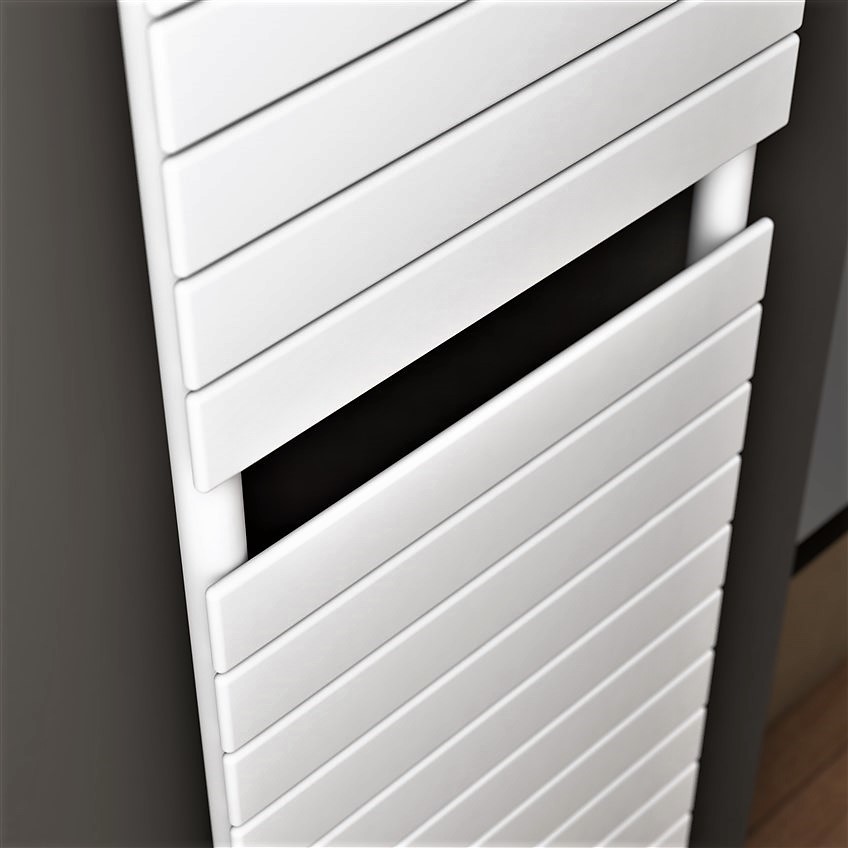

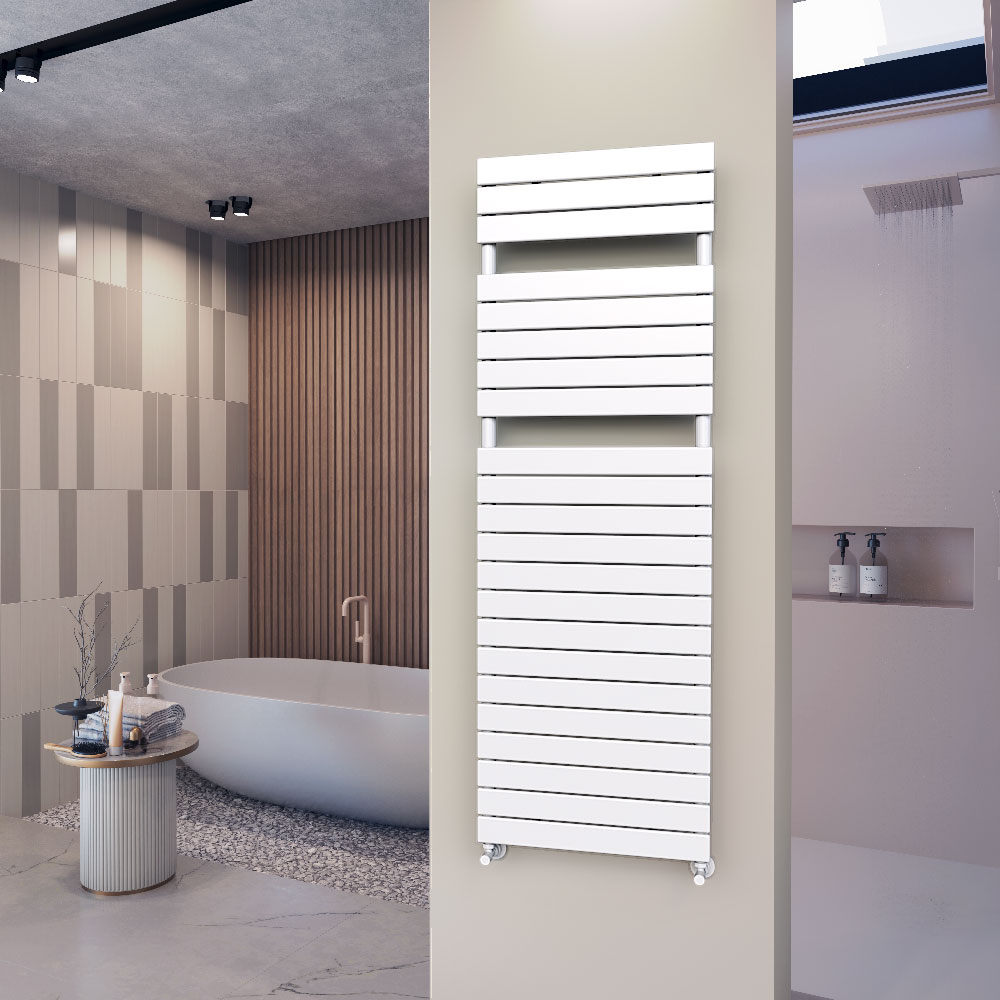

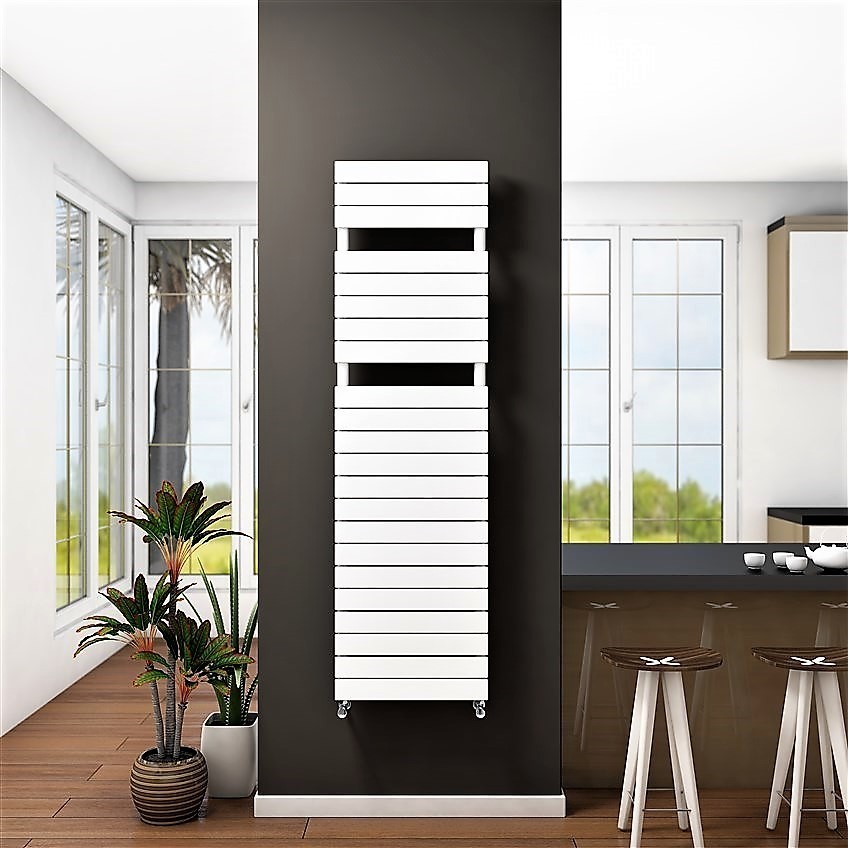

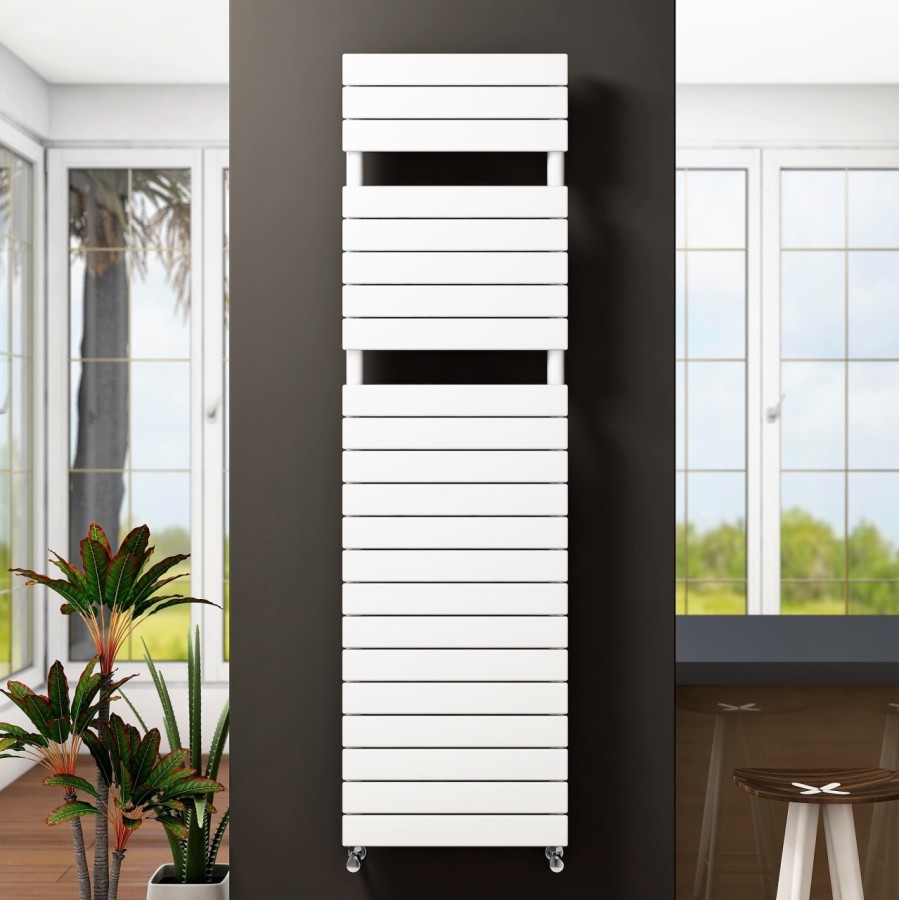

Tip 10H Decorative Towel Rail 600x1772 White

DECORATİVE TOWEL WARMERS TECHNICAL INFORMATION

• Model = Tip 10H

• Working system = Boiler, Central Heating System, Heat Pump (Hydronic Systems)

• Material = Steel

• Width = 600 mm

• Height = 1772 mm

• Color/Coating = Matt White

• Tapping Distance = 550 mm

• Maximum Working Pressure = 4,5 bar

• Wall to Center of Inlet = 40 mm

• Wall Projection Distance = 69 mm

• Towel Warmer Thread Dimension = 1/2"

• Water Volume = 9,6 lt

• Weight = 25,1 kg

• Boxed Weight = 26,2 kg

• Box Size = 64x182x10 cm

• Wall Mount Set Type = Metal

• Wall Mount Set Color = Same Color As The Product

• Assembly Set Is Included In The Price,Included in the Box.

• Prices do not include valves pls. refer to page "Valves" to see our range

• Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h

• Heat Output 75/65-20° ?t=50°C = 859 Kcal/h

• Heat Output 90/70-20° ?t=60°C = 1083 Kcal/h

• Heat Output 55/45-20° ?t=30°C = 440 Kcal/h

Watts

• Heat Output 75/65-20° ?t=50°C = 998 Watt

• Heat Output 90/70-20° ?t=60°C = 1258 Watt

• Heat Output 55/45-20° ?t=30°C = 511 Watt

Btu

• Heat Output 75/65-20° ?t=50°C = 3406 Btu

• Heat Output 90/70-20° ?t=60°C = 4292 Btu

• Heat Output 55/45-20° ?t=30°C = 1744 Btu
