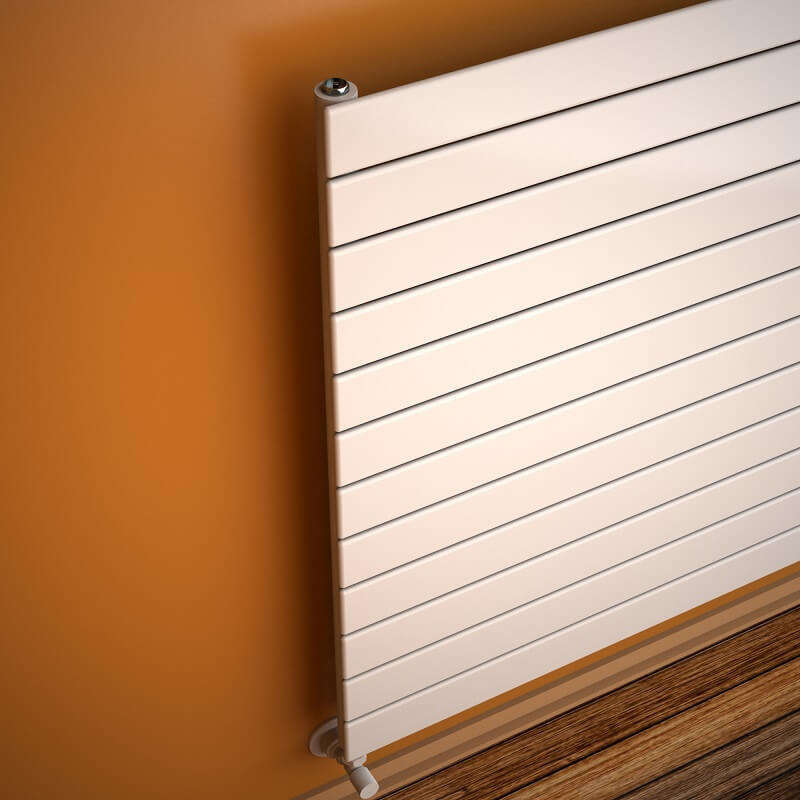

Type 10H Decorative Radiator 884x2600 White (Thin Radiator)

TECHNICAL INFORMATION

• Model = 10H

• Material =Steel

• Height=884 mm

• Width=2600 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=12 Pieces

• Total Number of Profiles (Front + Back)=12+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=17 lt

• Weight=51,2 kg

• Boxed Weight=58,4 kg

• Box Size=94x266x8,6 cm

TAPPING OPTIONS

• Standard Entry=2550 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=2690mm

• Cross Up-Right / Down-Left=2690mm

• Cross Up-Left / Down-Right=2690mm

• Side - Right=850mm

• Side - Left=850mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 2193 Kcal/h

• Heat Output 90/70-20° ?t=60°C=2764Kcal/h

• Heat Output 55/45-20° ?t=30°C=1123Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=2549 Watt

• Heat Output 90/70-20°?t=60°C=3212 Watt

• Heat Output 55/45-20°?t=30°C=1306 Watt


Btu

• Heat Output 75/65-20°?t=50°C=8698 Btu

• Heat Output 90/70-20°?t=60°C=10960 Btu

• Heat Output 55/45-20°?t=30°C=4454 Btu
