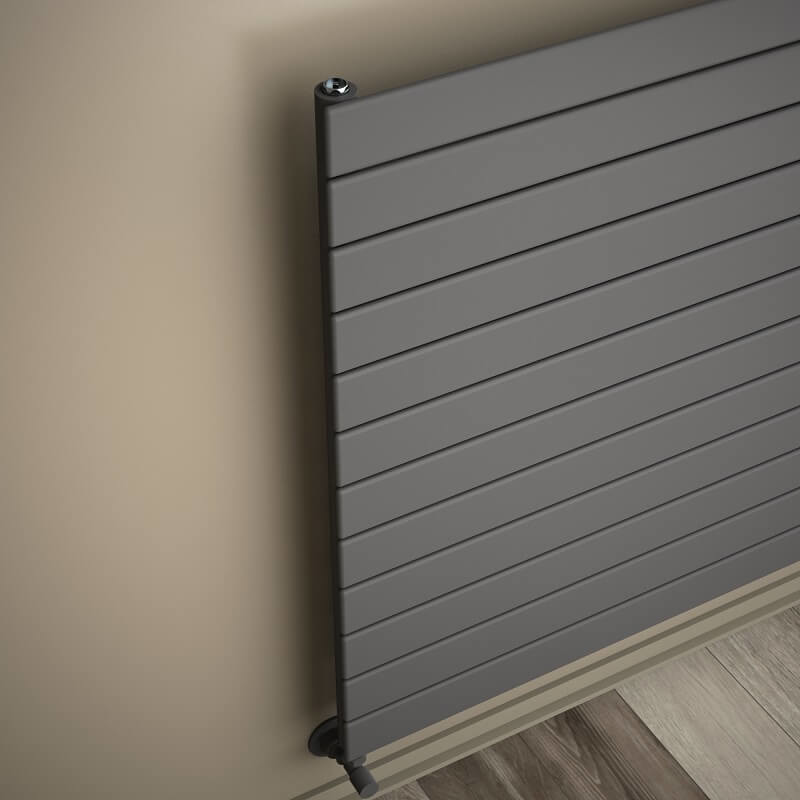

Type 10H Decorative Radiator 884x2300 Anthracite (Thin Radiator)

TECHNICAL INFORMATION

• Model = 10H

• Material =Steel

• Height=884 mm

• Width=2300 mm

• Color/Coating=Anthracite

• Number of Sections=12 Pieces

• Total Number of Profiles (Front + Back)=12+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=15,2 lt

• Weight=45,5 kg

• Boxed Weight=51,9 kg

• Box Size=94x236x8,6 cm

TAPPING OPTIONS

• Standard Entry=2250 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=2390mm

• Cross Up-Right / Down-Left=2390mm

• Cross Up-Left / Down-Right=2390mm

• Side - Right=850mm

• Side - Left=850mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1940 Kcal/h

• Heat Output 90/70-20° ?t=60°C=2445Kcal/h

• Heat Output 55/45-20° ?t=30°C=994Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=2255 Watt

• Heat Output 90/70-20°?t=60°C=2842 Watt

• Heat Output 55/45-20°?t=30°C=1155 Watt


Btu

• Heat Output 75/65-20°?t=50°C=7695 Btu

• Heat Output 90/70-20°?t=60°C=9696 Btu

• Heat Output 55/45-20°?t=30°C=3940 Btu
