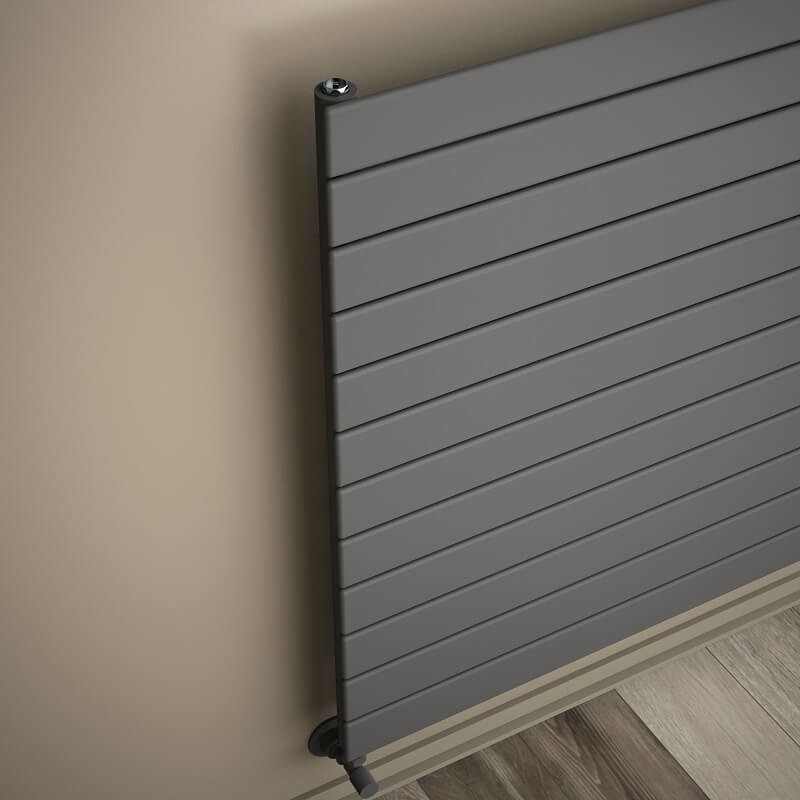

Type 10H Decorative Radiator 884x1600 Anthracite (Thin Radiator)

TECHNICAL INFORMATION

• Model = 10H

• Material =Steel

• Height=884 mm

• Width=1600 mm

• Color/Coating=Anthracite

• Number of Sections=12 Pieces

• Total Number of Profiles (Front + Back)=12+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=11,1 lt

• Weight=32,4 kg

• Boxed Weight=36,95 kg

• Box Size=94x166x8,6 cm

TAPPING OPTIONS

• Standard Entry=1550 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=1690mm

• Cross Up-Right / Down-Left=1690mm

• Cross Up-Left / Down-Right=1690mm

• Side - Right=850mm

• Side - Left=850mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1349 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1700Kcal/h

• Heat Output 55/45-20° ?t=30°C=691Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1568 Watt

• Heat Output 90/70-20°?t=60°C=1976 Watt

• Heat Output 55/45-20°?t=30°C=803 Watt


Btu

• Heat Output 75/65-20°?t=50°C=5351 Btu

• Heat Output 90/70-20°?t=60°C=6743 Btu

• Heat Output 55/45-20°?t=30°C=2740 Btu
