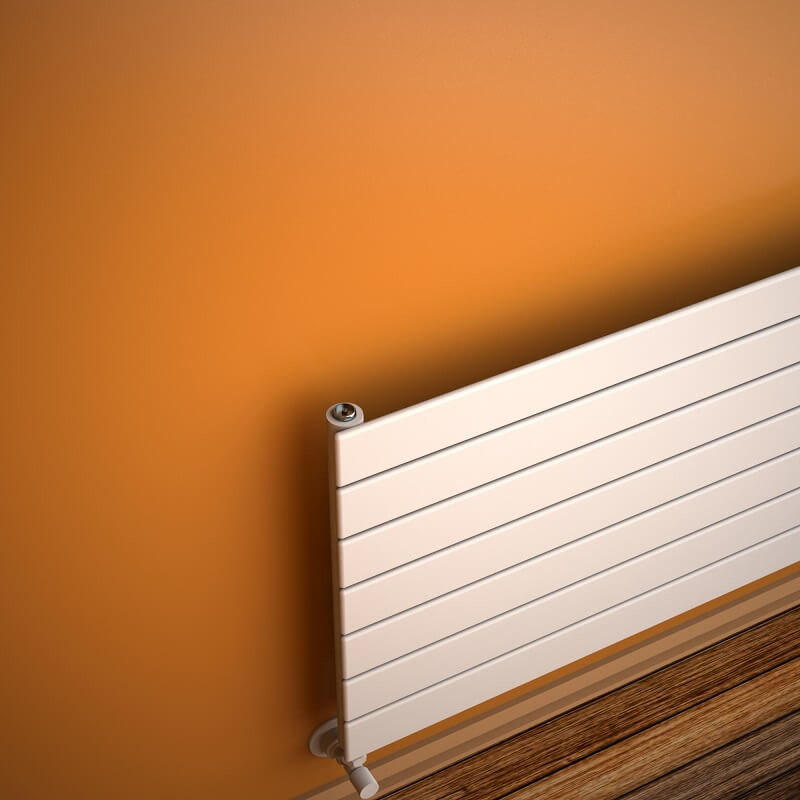

Type 10H Decorative Radiator 514x900 White (Thin Radiator)

TECHNICAL INFORMATION

• Model = 10H

• Material =Steel

• Height=514 mm

• Width=900 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=7 Pieces

• Total Number of Profiles (Front + Back)=7+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=4 lt

• Weight=11,3 kg

• Boxed Weight=12,99 kg

• Box Size=57x96x8,6 cm

TAPPING OPTIONS

• Standard Entry=850 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=990mm

• Cross Up-Right / Down-Left=990mm

• Cross Up-Left / Down-Right=990mm

• Side - Right=450mm

• Side - Left=450mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 467 Kcal/h

• Heat Output 90/70-20° ?t=60°C=589Kcal/h

• Heat Output 55/45-20° ?t=30°C=240Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=543 Watt

• Heat Output 90/70-20°?t=60°C=685 Watt

• Heat Output 55/45-20°?t=30°C=279 Watt


Btu

• Heat Output 75/65-20°?t=50°C=1853 Btu

• Heat Output 90/70-20°?t=60°C=2335 Btu

• Heat Output 55/45-20°?t=30°C=949 Btu
