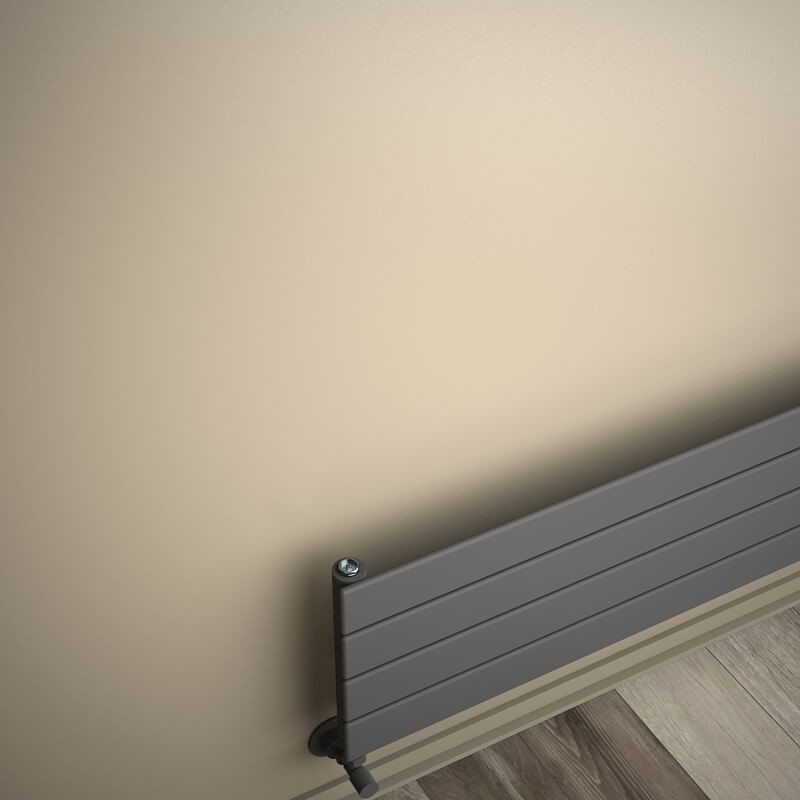

Type 10H Decorative Radiator 292x800 Anthracite (Thin Radiator)

TECHNICAL INFORMATION

• Model = 10H

• Material =Steel

• Height=292 mm

• Width=800 mm

• Color/Coating=Anthracite

• Number of Sections=4 Pieces

• Total Number of Profiles (Front + Back)=4+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=2,1 lt

• Weight=5,9 kg

• Boxed Weight=6,91 kg

• Box Size=35x86x8,6 cm

TAPPING OPTIONS

• Standard Entry=750 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=890mm

• Cross Up-Right / Down-Left=890mm

• Cross Up-Left / Down-Right=890mm

• Side - Right=250mm

• Side - Left=250mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 252 Kcal/h

• Heat Output 90/70-20° ?t=60°C=318Kcal/h

• Heat Output 55/45-20° ?t=30°C=130Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=293 Watt

• Heat Output 90/70-20°?t=60°C=370 Watt

• Heat Output 55/45-20°?t=30°C=151 Watt


Btu

• Heat Output 75/65-20°?t=50°C=1000 Btu

• Heat Output 90/70-20°?t=60°C=1260 Btu

• Heat Output 55/45-20°?t=30°C=512 Btu
