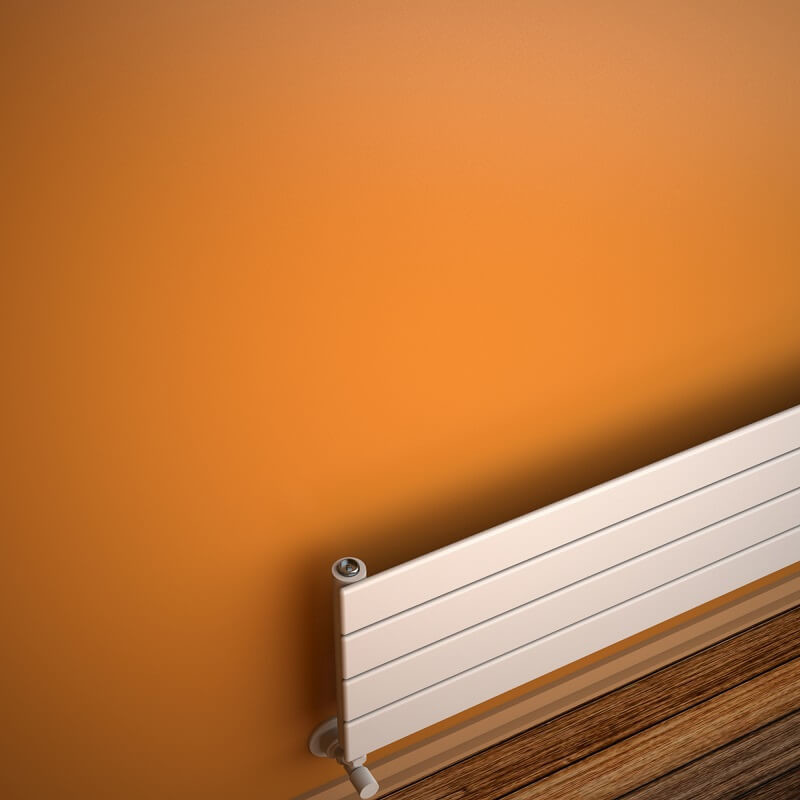

Type 10H Decorative Radiator 292x2400 White (Thin Radiator)

TECHNICAL INFORMATION

• Model = 10H

• Material =Steel

• Height=292 mm

• Width=2400 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=4 Pieces

• Total Number of Profiles (Front + Back)=4+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=5,3 lt

• Weight=15,9 kg

• Boxed Weight=18,31 kg

• Box Size=35x246x8,6 cm

TAPPING OPTIONS

• Standard Entry=2350 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=2490mm

• Cross Up-Right / Down-Left=2490mm

• Cross Up-Left / Down-Right=2490mm

• Side - Right=250mm

• Side - Left=250mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 756 Kcal/h

• Heat Output 90/70-20° ?t=60°C=953Kcal/h

• Heat Output 55/45-20° ?t=30°C=388Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=879 Watt

• Heat Output 90/70-20°?t=60°C=1108 Watt

• Heat Output 55/45-20°?t=30°C=451 Watt


Btu

• Heat Output 75/65-20°?t=50°C=3000 Btu

• Heat Output 90/70-20°?t=60°C=3780 Btu

• Heat Output 55/45-20°?t=30°C=1536 Btu
