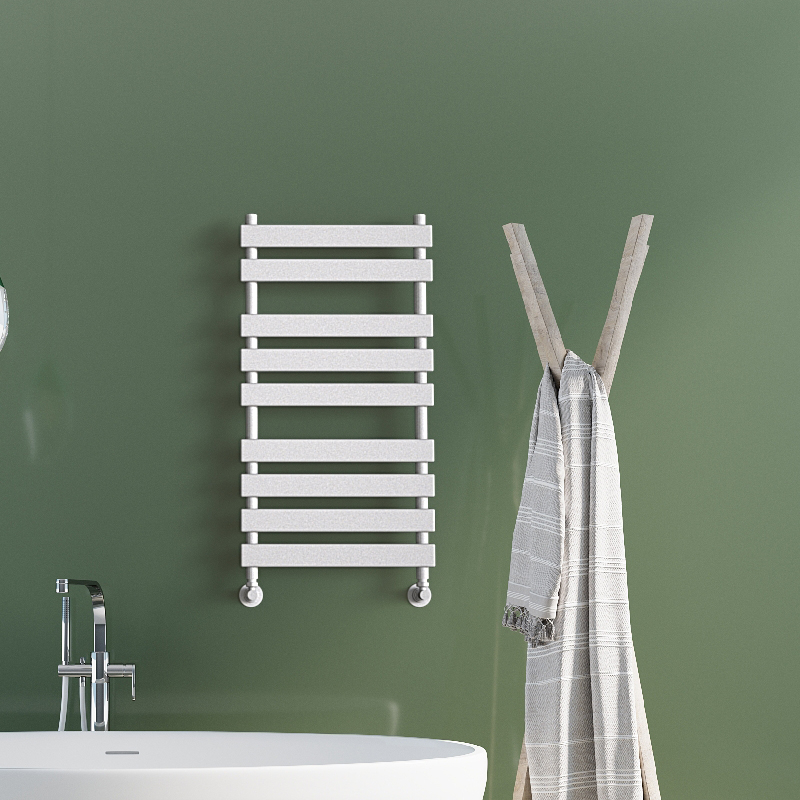

Tahiti Decorative Towel Rail 500x1300 White

DECORATİVE TOWEL WARMERS TECHNICAL INFORMATION

• Model = Tahiti

• Working system = Boiler, Central Heating System, Heat Pump (Hydronic Systems)

• Material = Steel

• Width = 500 mm

• Height = 1300 mm

• Color/Coating = Matt White

• Tapping Distance = 440 mm

• Maximum Working Pressure = 3 bar

• Wall to Center of Inlet = 65 mm

• Wall Projection Distance = 91 mm

• Towel Warmer Thread Dimension = 1/2"

• Water Volume = 5,4 lt

• Weight = 14 kg

• Boxed Weight = 16,5 kg

• Box Size = 52x133x7 cm

• Wall Mount Set Type = Metal

• Wall Mount Set Color = Same Color As The Product

• Assembly Set Is Included In The Price,Included in the Box.

• Prices do not include valves pls. refer to page "Valves" to see our range

• Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h

• Heat Output 75/65-20° ?t=50°C = 501 Kcal/h

• Heat Output 90/70-20° ?t=60°C = 632 Kcal/h

• Heat Output 55/45-20° ?t=30°C = 257 Kcal/h

Watts

• Heat Output 75/65-20° ?t=50°C = 582 Watt

• Heat Output 90/70-20° ?t=60°C = 734 Watt

• Heat Output 55/45-20° ?t=30°C = 298 Watt

Btu

• Heat Output 75/65-20° ?t=50°C = 1986 Btu

• Heat Output 90/70-20° ?t=60°C = 2503 Btu

• Heat Output 55/45-20° ?t=30°C = 1017 Btu
