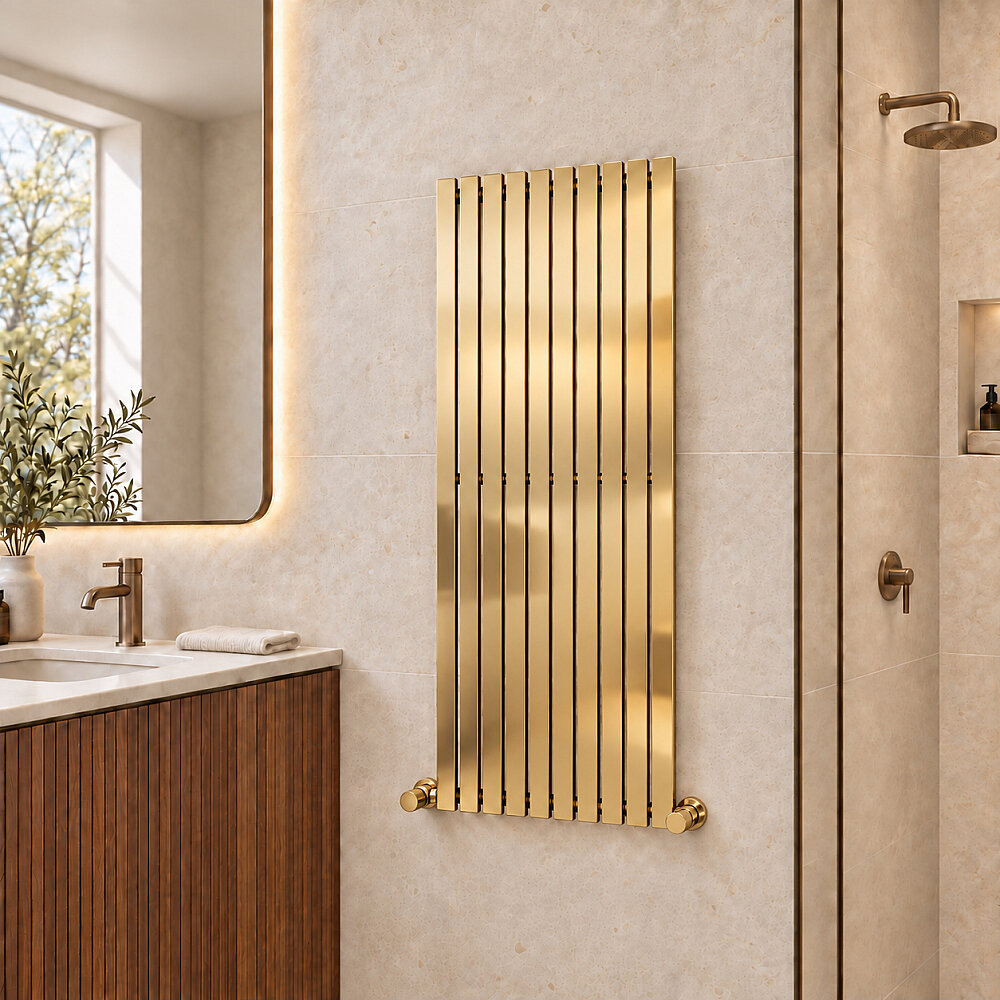

Silba Decorative Towel Rail 550x1500 Gold

DECORATİVE TOWEL WARMERS TECHNICAL INFORMATION

• Model = Silba

• Working system = Boiler, Central Heating System, Heat Pump (Hydronic Systems)

• Material = Steel

• Width = 550 mm

• Height = 1500 mm

• Color/Coating = Altın Renkli

• Tapping Distance = 550+90 mm

• Maximum Working Pressure = 3 bar

• Wall to Center of Inlet = 62 mm

• Wall Projection Distance = 88 mm

• Towel Warmer Thread Dimension = 1/2"

• Water Volume = 7,4 lt

• Weight = 26,8 kg

• Boxed Weight = 30,1 kg

• Box Size = 57x153x7 cm

• Wall Mount Set Type = Metal

• Wall Mount Set Color = Same Color As The Product

• Assembly Set Is Included In The Price,Included in the Box.

• Prices do not include valves pls. refer to page "Valves" to see our range

• Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h

• Heat Output 75/65-20° ?t=50°C = 575 Kcal/h

• Heat Output 90/70-20° ?t=60°C = 725 Kcal/h

• Heat Output 55/45-20° ?t=30°C = 296 Kcal/h

Watts

• Heat Output 75/65-20° ?t=50°C = 669 Watt

• Heat Output 90/70-20° ?t=60°C = 843 Watt

• Heat Output 55/45-20° ?t=30°C = 343 Watt

Btu

• Heat Output 75/65-20° ?t=50°C = 2283 Btu

• Heat Output 90/70-20° ?t=60°C = 2877 Btu

• Heat Output 55/45-20° ?t=30°C = 1170 Btu
