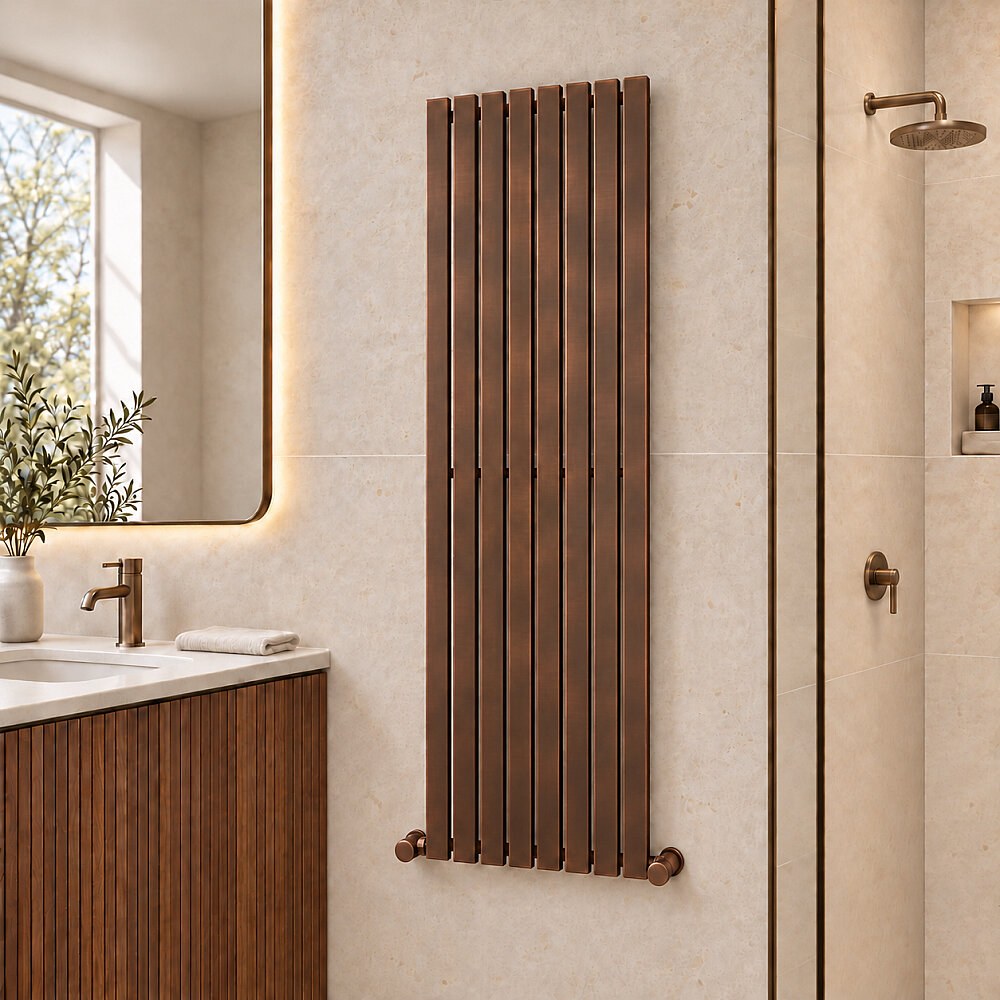

Silba Decorative Towel Rail 480x1800 Antique Copper

DECORATİVE TOWEL WARMERS TECHNICAL INFORMATION

• Model = Silba

• Working system = Boiler, Central Heating System, Heat Pump (Hydronic Systems)

• Material = Steel

• Width = 480 mm

• Height = 1800 mm

• Color/Coating = Bakır Eskitme

• Tapping Distance = 480+90 mm

• Maximum Working Pressure = 3 bar

• Wall to Center of Inlet = 62 mm

• Wall Projection Distance = 88 mm

• Towel Warmer Thread Dimension = 1/2"

• Water Volume = 7,3 lt

• Weight = 23,9 kg

• Boxed Weight = 26,9 kg

• Box Size = 50x183x7 cm

• Wall Mount Set Type = Metal

• Wall Mount Set Color = Same Color As The Product

• Assembly Set Is Included In The Price,Included in the Box.

• Prices do not include valves pls. refer to page "Valves" to see our range

• Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h

• Heat Output 75/65-20° ?t=50°C = 561 Kcal/h

• Heat Output 90/70-20° ?t=60°C = 707 Kcal/h

• Heat Output 55/45-20° ?t=30°C = 288 Kcal/h

Watts

• Heat Output 75/65-20° ?t=50°C = 651 Watt

• Heat Output 90/70-20° ?t=60°C = 821 Watt

• Heat Output 55/45-20° ?t=30°C = 334 Watt

Btu

• Heat Output 75/65-20° ?t=50°C = 2222 Btu

• Heat Output 90/70-20° ?t=60°C = 2800 Btu

• Heat Output 55/45-20° ?t=30°C = 1139 Btu
