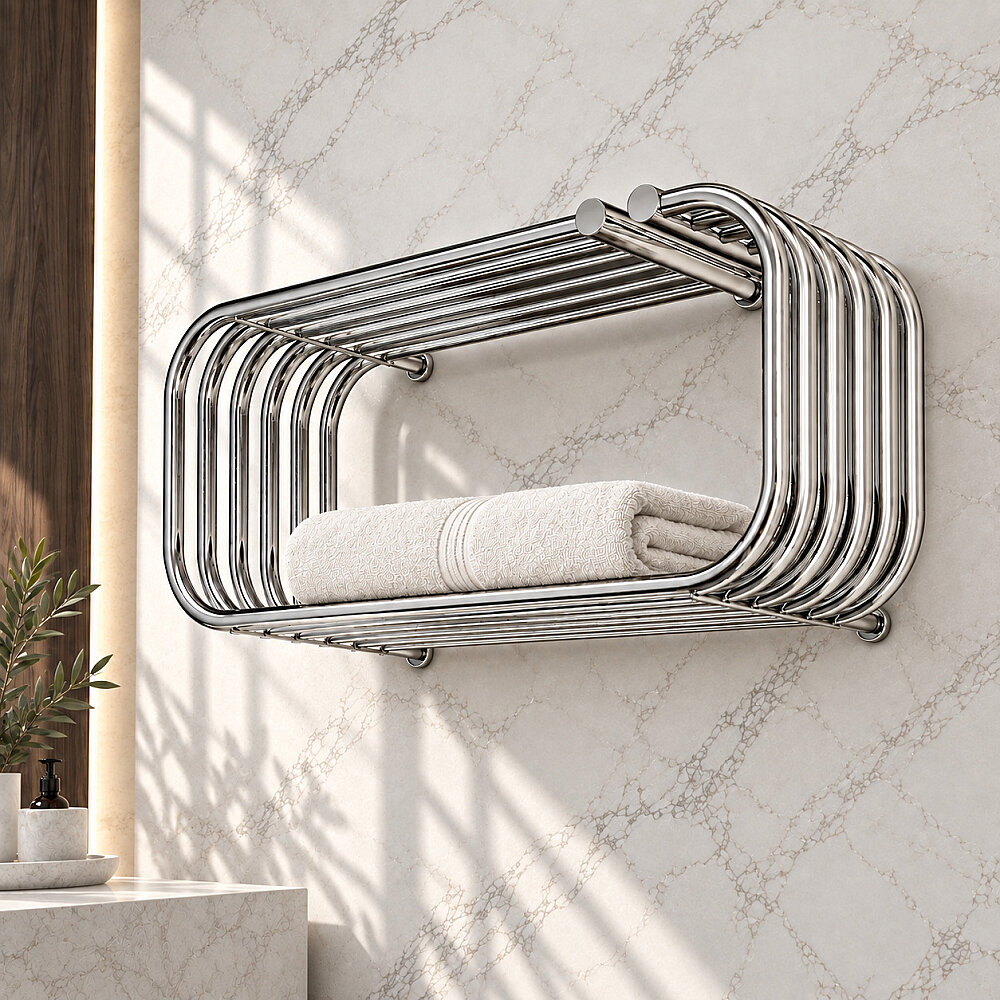

Santorini Decorative Towel Rail 700x330 Chrome

DECORATİVE TOWEL WARMERS TECHNICAL INFORMATION

• Model = Santorini

• Working system = Boiler, Central Heating System, Heat Pump (Hydronic Systems)

• Material = Steel

• Width = 700 mm

• Height = 330 mm

• Color/Coating = Krom

• Tapping Distance = 50 mm

• Maximum Working Pressure = 10 bar

• Wall to Center of Inlet = 85-105 mm

• Wall Projection Distance = 295-315 mm

• Towel Warmer Thread Dimension = 1/2"

• Water Volume = 5,1 lt

• Weight = 6,5 kg

• Boxed Weight = 8,4 kg

• Box Size = 35x72x35 cm

• Wall Mount Set Type = Metal

• Wall Mount Set Color = Same Color As The Product

• Assembly Set Is Included In The Price,Included in the Box.

• Prices do not include valves pls. refer to page "Valves" to see our range

• Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h

• Heat Output 75/65-20° ?t=50°C = 245 Kcal/h

• Heat Output 90/70-20° ?t=60°C = 309 Kcal/h

• Heat Output 55/45-20° ?t=30°C = 126 Kcal/h

Watts

• Heat Output 75/65-20° ?t=50°C = 284 Watt

• Heat Output 90/70-20° ?t=60°C = 358 Watt

• Heat Output 55/45-20° ?t=30°C = 146 Watt

Btu

• Heat Output 75/65-20° ?t=50°C = 970 Btu

• Heat Output 90/70-20° ?t=60°C = 1223 Btu

• Heat Output 55/45-20° ?t=30°C = 497 Btu
