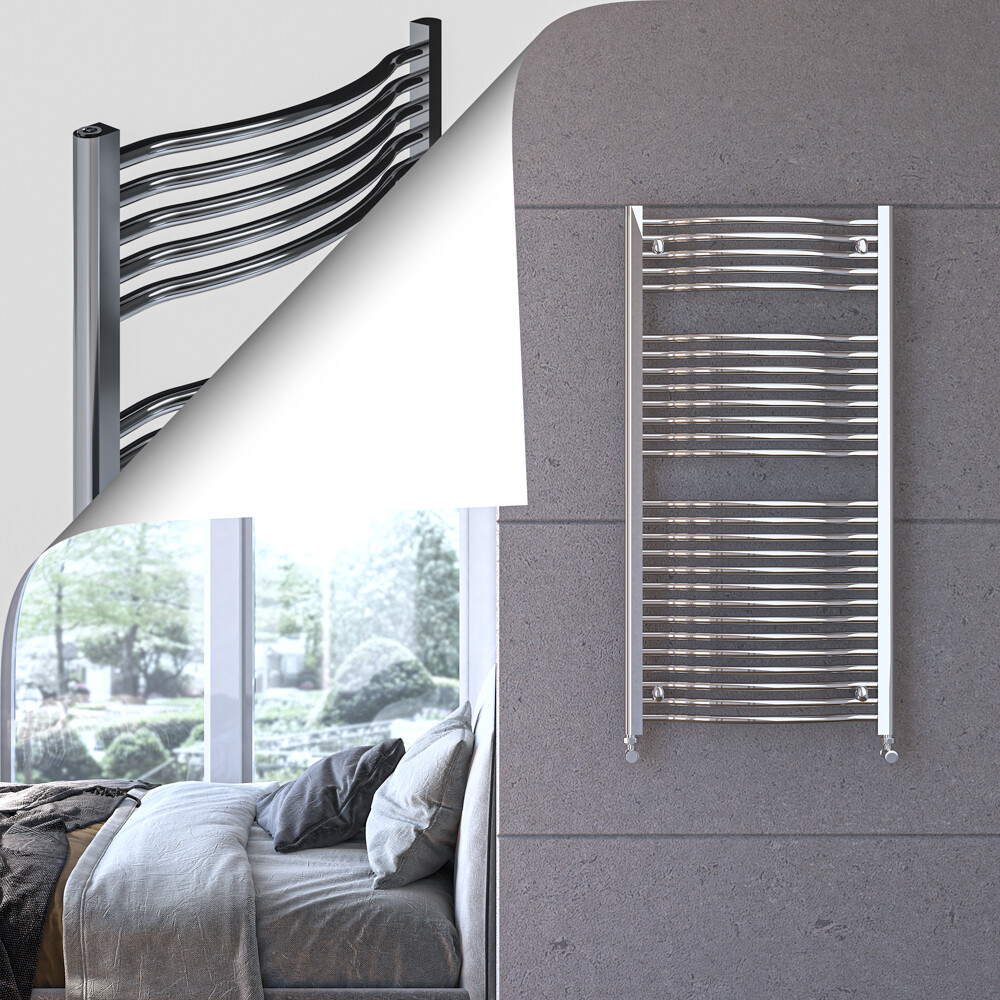

Olyumpus Decorative Towel Rail 600x1172 Chrome

DECORATİVE TOWEL WARMERS TECHNICAL INFORMATION

• Model = Olyumpus

• Working system = Boiler, Central Heating System, Heat Pump (Hydronic Systems)

• Material = Steel

• Width = 600 mm

• Height = 1172 mm

• Color/Coating = Chrome

• Tapping Distance = 550 mm

• Maximum Working Pressure = 10 bar

• Wall to Center of Inlet = 65-85 mm

• Wall Projection Distance = 85-100 mm

• Towel Warmer Thread Dimension = 1/2"

• Water Volume = 6,5 lt

• Weight = 11.02 kg

• Boxed Weight = 12,3 kg

• Box Size = 62x122x6 cm

• Wall Mount Set Type = Metal

• Wall Mount Set Color = Chrome

• Assembly Set Is Included In The Price,Included in the Box.

• Prices do not include valves pls. refer to page "Valves" to see our range

• Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h

• Heat Output 75/65-20° ?t=50°C = 394 Kcal/h

• Heat Output 90/70-20° ?t=60°C = 497 Kcal/h

• Heat Output 55/45-20° ?t=30°C = 202 Kcal/h

Watts

• Heat Output 75/65-20° ?t=50°C = 458 Watt

• Heat Output 90/70-20° ?t=60°C = 578 Watt

• Heat Output 55/45-20° ?t=30°C = 235 Watt

Btu

• Heat Output 75/65-20° ?t=50°C = 2371 Btu

• Heat Output 90/70-20° ?t=60°C = 2989 Btu

• Heat Output 55/45-20° ?t=30°C = 1215 Btu
