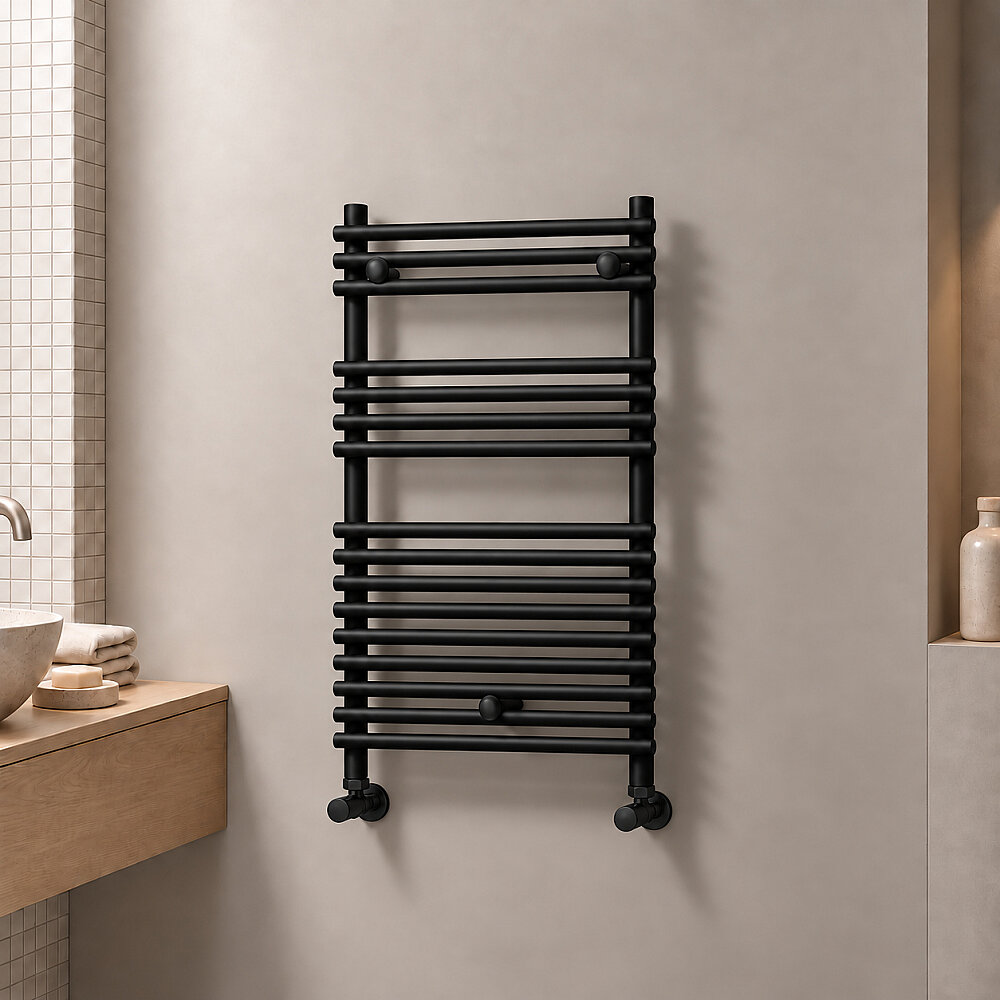

Olib Decorative Towel Rail 500x800 Black

DECORATİVE TOWEL WARMERS TECHNICAL INFORMATION

• Model = Olib

• Working system = Boiler, Central Heating System, Heat Pump (Hydronic Systems)

• Material = Steel

• Width = 500 mm

• Height = 800 mm

• Color/Coating = Matte Black

• Tapping Distance = 450 mm

• Maximum Working Pressure = 10 bar

• Wall to Center of Inlet = 50-70 mm

• Wall Projection Distance = 88-108 mm

• Towel Warmer Thread Dimension = 1/2"

• Water Volume = 4,5 lt

• Weight = 7,1 kg

• Boxed Weight = 8,2 kg

• Box Size = 53x82x6 cm

• Wall Mount Set Type = Metal

• Wall Mount Set Color = Same Color As The Product

• Assembly Set Is Included In The Price,Included in the Box.

• Prices do not include valves pls. refer to page "Valves" to see our range

• Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h

• Heat Output 75/65-20° ?t=50°C = 289 Kcal/h

• Heat Output 90/70-20° ?t=60°C = 365 Kcal/h

• Heat Output 55/45-20° ?t=30°C = 148 Kcal/h

Watts

• Heat Output 75/65-20° ?t=50°C = 336 Watt

• Heat Output 90/70-20° ?t=60°C = 424 Watt

• Heat Output 55/45-20° ?t=30°C = 173 Watt

Btu

• Heat Output 75/65-20° ?t=50°C = 1147 Btu

• Heat Output 90/70-20° ?t=60°C = 1446 Btu

• Heat Output 55/45-20° ?t=30°C = 588 Btu
