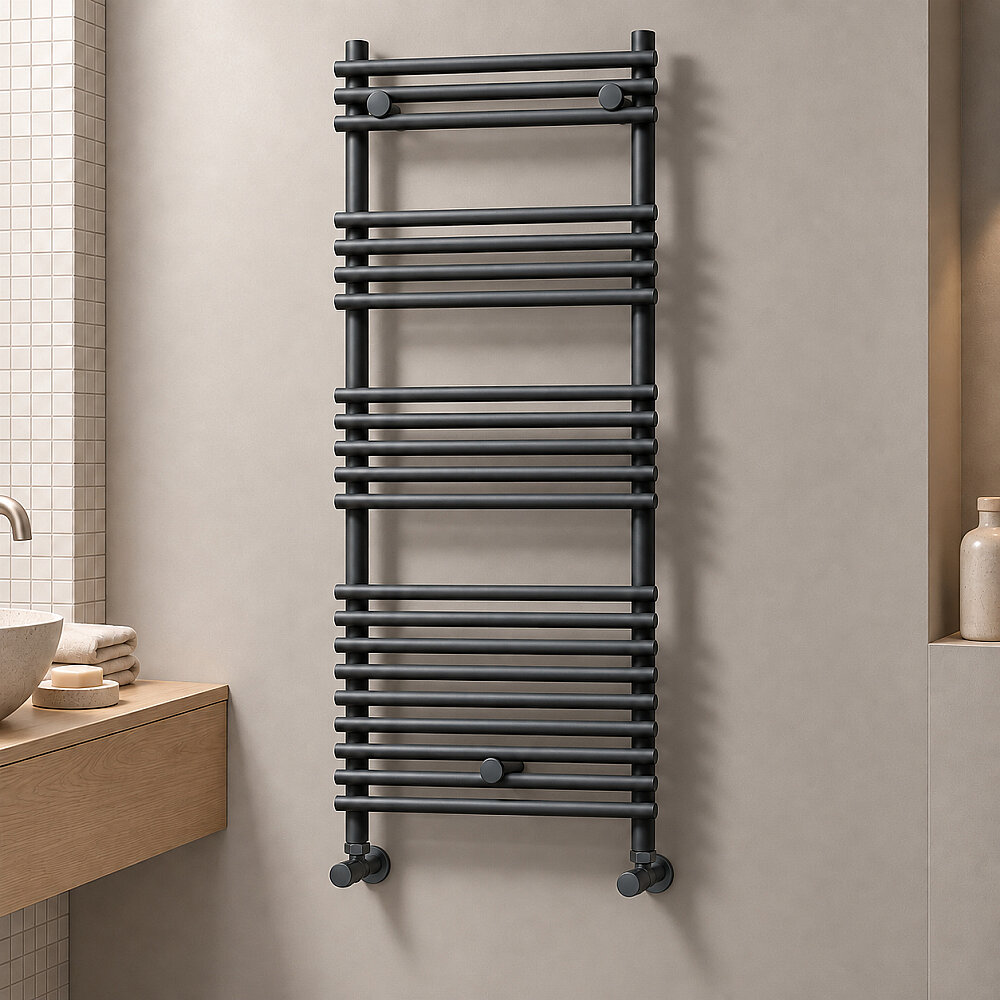

Olib Decorative Towel Rail 500x1200 Anthracite

DECORATİVE TOWEL WARMERS TECHNICAL INFORMATION

• Model = Olib

• Working system = Boiler, Central Heating System, Heat Pump (Hydronic Systems)

• Material = Steel

• Width = 500 mm

• Height = 1200 mm

• Color/Coating = Anthracite

• Tapping Distance = 450 mm

• Maximum Working Pressure = 10 bar

• Wall to Center of Inlet = 50-70 mm

• Wall Projection Distance = 88-108 mm

• Towel Warmer Thread Dimension = 1/2"

• Water Volume = 5,9 lt

• Weight = 10,4 kg

• Boxed Weight = 11,8 kg

• Box Size = 53x122x6 cm

• Wall Mount Set Type = Metal

• Wall Mount Set Color = Same Color As The Product

• Assembly Set Is Included In The Price,Included in the Box.

• Prices do not include valves pls. refer to page "Valves" to see our range

• Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h

• Heat Output 75/65-20° ?t=50°C = 435 Kcal/h

• Heat Output 90/70-20° ?t=60°C = 549 Kcal/h

• Heat Output 55/45-20° ?t=30°C = 223 Kcal/h

Watts

• Heat Output 75/65-20° ?t=50°C = 505 Watt

• Heat Output 90/70-20° ?t=60°C = 637 Watt

• Heat Output 55/45-20° ?t=30°C = 259 Watt

Btu

• Heat Output 75/65-20° ?t=50°C = 1724 Btu

• Heat Output 90/70-20° ?t=60°C = 2173 Btu

• Heat Output 55/45-20° ?t=30°C = 883 Btu
