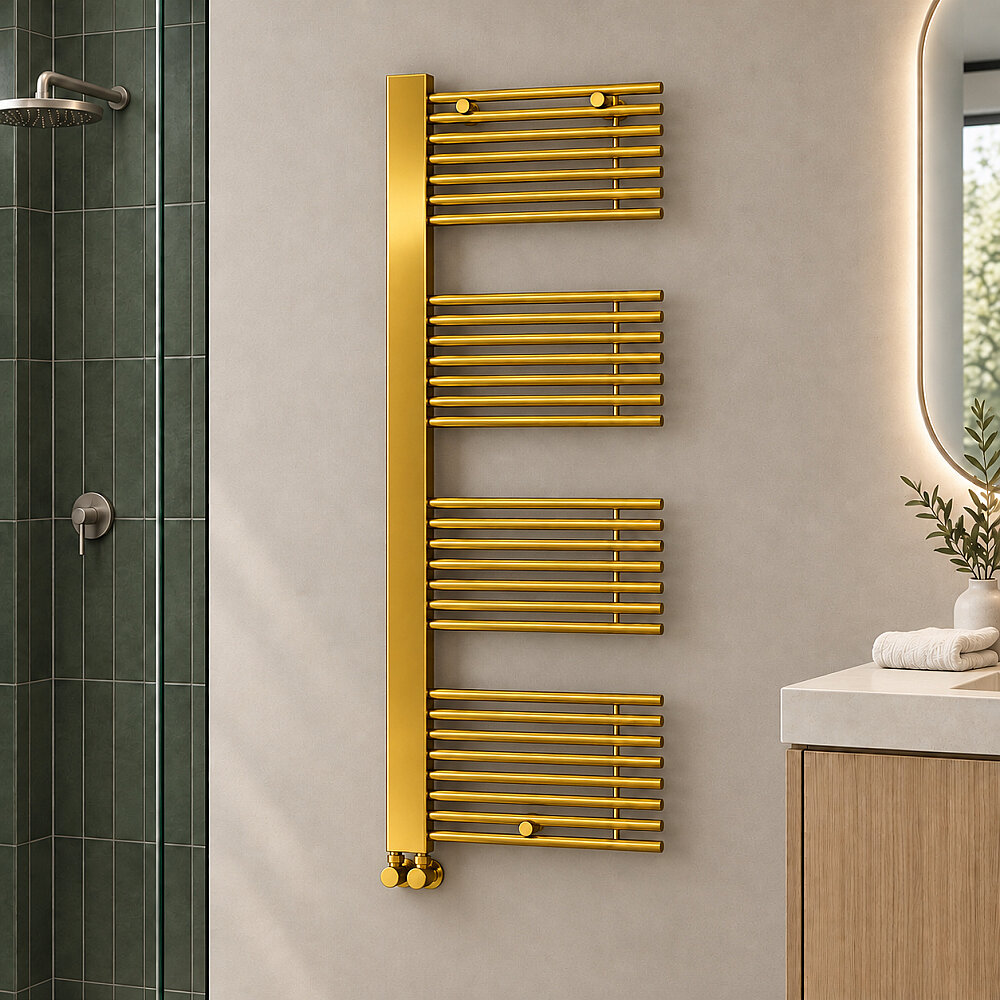

Male Decorative Towel Rail 600x1600 Gold

DECORATİVE TOWEL WARMERS TECHNICAL INFORMATION

• Model = Male

• Working system = Boiler, Central Heating System, Heat Pump (Hydronic Systems)

• Material = Steel

• Width = 600 mm

• Height = 1600 mm

• Color/Coating = Altın Renkli

• Tapping Distance = 50 mm

• Maximum Working Pressure = 3 bar

• Wall to Center of Inlet = 55-75 mm

• Wall Projection Distance = 75-95 mm

• Towel Warmer Thread Dimension = 1/2"

• Water Volume = 10,8 lt

• Weight = 16,6 kg

• Boxed Weight = 19,3 kg

• Box Size = 62x162x6 cm

• Wall Mount Set Type = Metal

• Wall Mount Set Color = Same Color As The Product

• Assembly Set Is Included In The Price,Included in the Box.

• Prices do not include valves pls. refer to page "Valves" to see our range

• Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h

• Heat Output 75/65-20° ?t=50°C = 561 Kcal/h

• Heat Output 90/70-20° ?t=60°C = 707 Kcal/h

• Heat Output 55/45-20° ?t=30°C = 288 Kcal/h

Watts

• Heat Output 75/65-20° ?t=50°C = 652 Watt

• Heat Output 90/70-20° ?t=60°C = 822 Watt

• Heat Output 55/45-20° ?t=30°C = 334 Watt

Btu

• Heat Output 75/65-20° ?t=50°C = 2225 Btu

• Heat Output 90/70-20° ?t=60°C = 2804 Btu

• Heat Output 55/45-20° ?t=30°C = 1140 Btu
