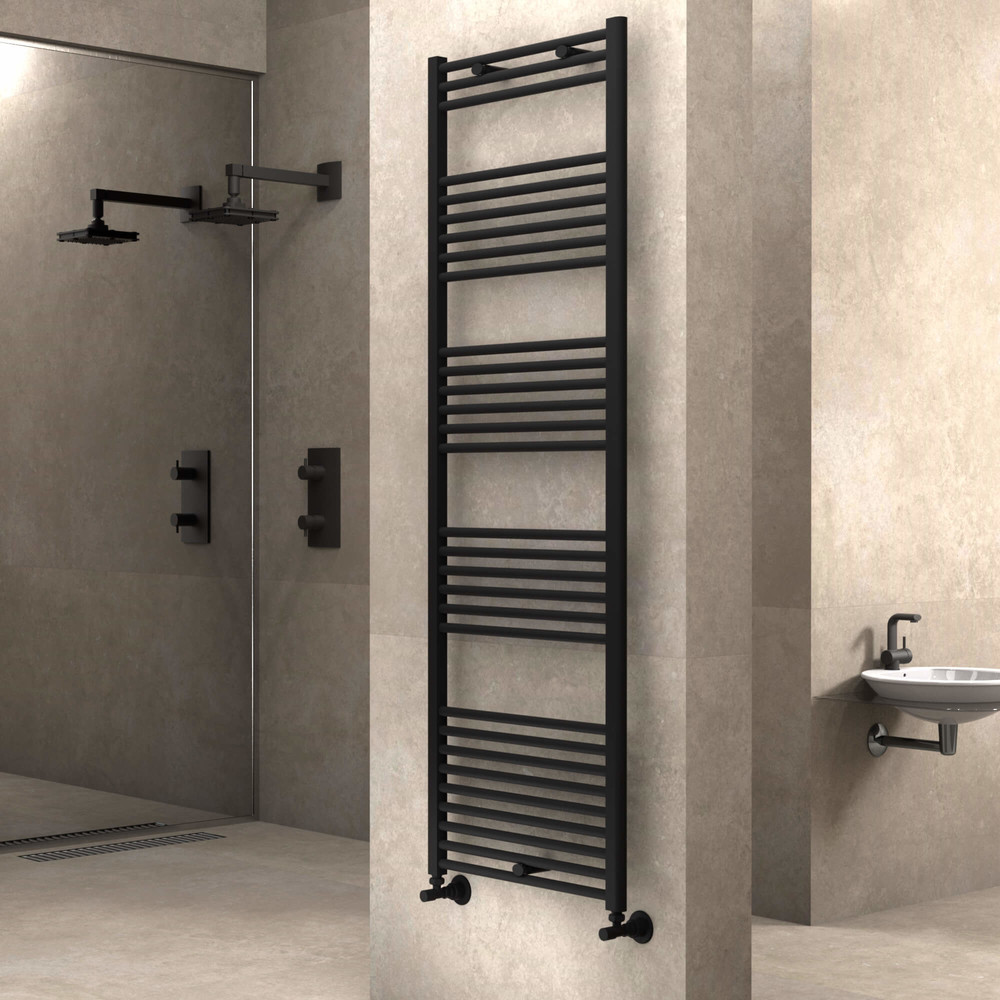

Haiti Towel Warmer 600x1800 Matte Black

TECHNICAL INFORMATION

• Model = Haiti

• Material =Steel

• Width= 600mm

• Height = 1800mm

• Tapping Distance = 555mm

• Color / Coating = Matte Black

• Horizontal Pipe Quantity= 30Pieces

• Horizontal Pipe Dimension = 22mm

• Vertical Collector Size= 30x40mm D Profile

• Maximum Working Pressure= 10bar

• Wall to Center of Inlet= 65-85 mm

• Wall Projection Distance=80-100 mm

• Towel Warmer Thread Dimension=1/2"

• Water Volume= 8,4lt

• Weight= 11,3kg

• Boxed Weight=12,3kg

• Box Size= 62x182x3,8cm

• Assembly Set Is Included In The Price,Included in the Box.





Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h


• Heat Output 75/65-20°?t=50°C = 714Kcal/h

• Heat Output 90/70-20° ?t=60°C= 900Kcal/h

• Heat Output 55/45-20° ?t=30°C= 366Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C= 829Watt

• Heat Output 90/70-20°?t=60°C= 1045Watt

• Heat Output 55/45-20°?t=30°C= 425Watt


Btu

• Heat Output 75/65-20°?t=50°C= 2830Btu

• Heat Output 90/70-20°?t=60°C= 3566Btu

• Heat Output 55/45-20°?t=30°C= 1449Btu
