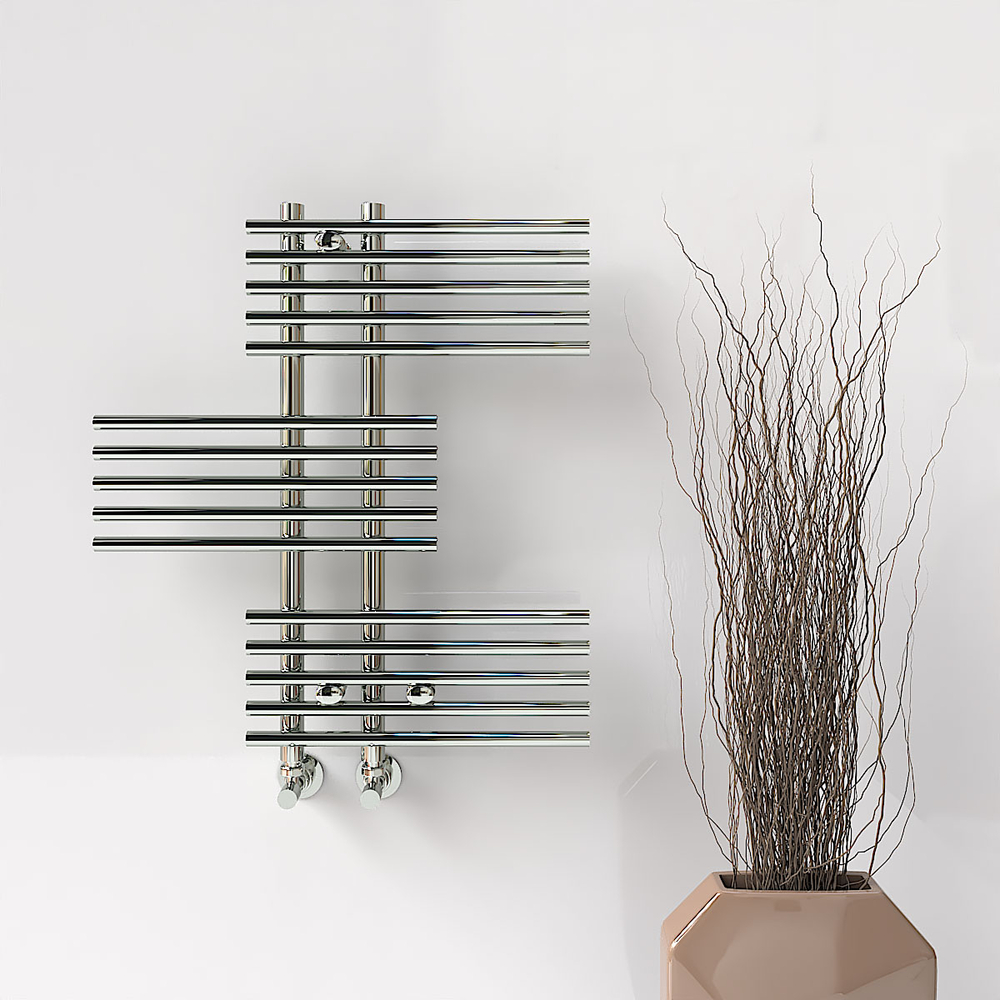

Fiji Decorative Towel Rail 650x740 Chrome

DECORATİVE TOWEL WARMERS TECHNICAL INFORMATION

• Model = Fiji

• Working system = Boiler, Central Heating System, Heat Pump (Hydronic Systems)

• Material = Steel

• Width = 650 mm

• Height = 740 mm

• Color/Coating = Krom

• Tapping Distance = 120 mm

• Maximum Working Pressure = 10 bar

• Wall to Center of Inlet = 47-67 mm

• Wall Projection Distance = 82-102 mm

• Towel Warmer Thread Dimension = 1/2"

• Water Volume = 3,1 lt

• Weight = 5,5 kg

• Boxed Weight = 6,9 kg

• Box Size = 67x76x6 cm

• Wall Mount Set Type = Plastik

• Wall Mount Set Color = Same Color As The Product

• Assembly Set Is Included In The Price,Included in the Box.

• Prices do not include valves pls. refer to page "Valves" to see our range

• Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h

• Heat Output 75/65-20° ?t=50°C = 321 Kcal/h

• Heat Output 90/70-20° ?t=60°C = 405 Kcal/h

• Heat Output 55/45-20° ?t=30°C = 165 Kcal/h

Watts

• Heat Output 75/65-20° ?t=50°C = 373 Watt

• Heat Output 90/70-20° ?t=60°C = 470 Watt

• Heat Output 55/45-20° ?t=30°C = 191 Watt

Btu

• Heat Output 75/65-20° ?t=50°C = 1273 Btu

• Heat Output 90/70-20° ?t=60°C = 1604 Btu

• Heat Output 55/45-20° ?t=30°C = 652 Btu
