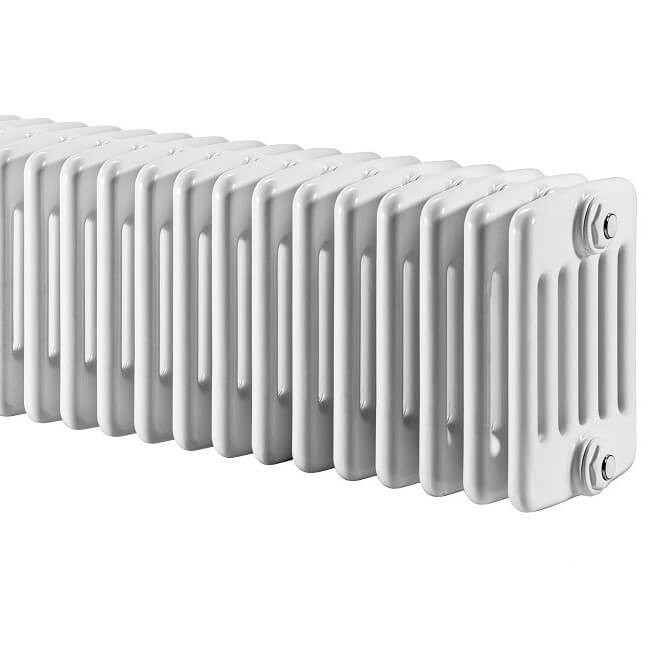

Dl 6 Column Radiator 300x1406 Anthracite

COLUMN RADIATOR TECHNICAL INFORMATION

• Model = 6K

• Material  = Steel

• Height = 300 mm

• Width   = 1406 mm

• Color = Anthracite

• Number of Columns = 6

• Number of Sections  = 30 Pieces

• Legs Needed If Free Standing = 3 Pieces

• Diameter of Vertical Pipes = 25 mm

• Maximum Working Pressure = 10 bar

• Wall to Center of Inlet = 149 mm

• Wall Projection Distance  = 264 mm

• Section Width    = 46 mm

• Radiator Depth  = 230 mm

• Radiator Thread Dimension     = 1/2"

• Water Volume    = 33 lt

• Radiator Weight    = 45 kg

TAPPING OPTIONS

• Standard Entry1    = 230 mm

• Standard Entry Cross = 1496 mm

• Sides / Bottom Right-Left  = 1496 mm

• Bottom Middle Entrance = 50 mm

• Bottom Right Entrance  = 50 mm

• Bottom Left Entrance   = 50 mm

Heat Output

Kcal / h

• Heat Output 75/65-20° ∆t=50°C = 1608 Kcal/h

• Heat Output 90/70-20° ∆t=60°C = 2027 Kcal/h

• Heat Output 55/45-20° ∆t=30°C = 824 Kcal/h

Watts

• Heat Output 75/65-20° ∆t=50°C = 1869 Watt

• Heat Output 90/70-20° ∆t=60°C = 2355 Watt

• Heat Output 55/45-20° ∆t=30°C = 957 Watt

Btu

• Heat Output 75/65-20° ∆t=50°C = 6378 Btu

• Heat Output 90/70-20° ∆t=60°C = 8037 Btu

• Heat Output 55/45-20° ∆t=30°C = 3266 Btu
