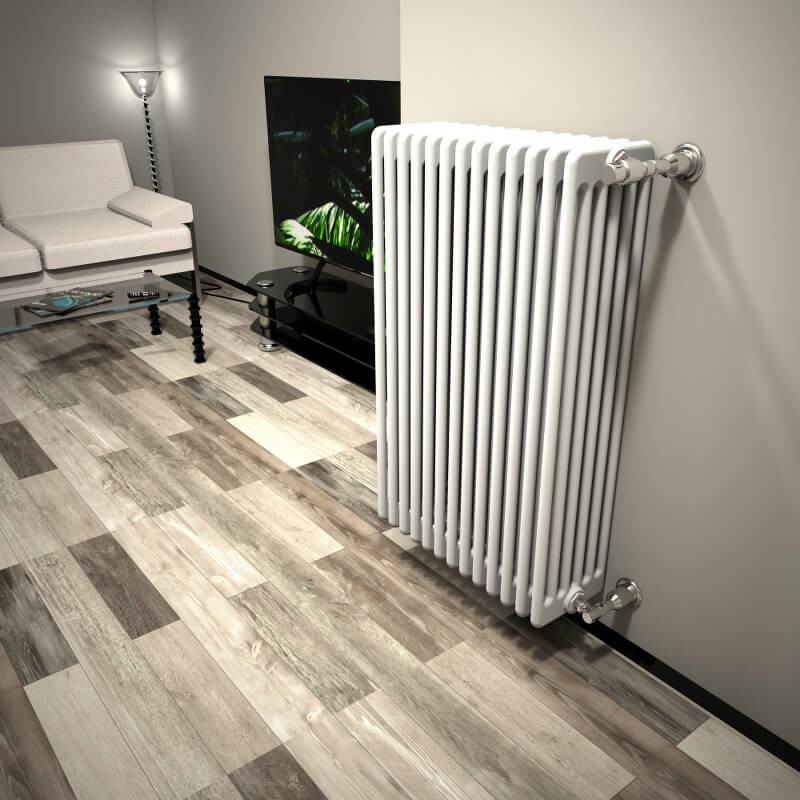

DL 6 Column Radiator 1000x624 White

COLUMN RADIATOR TECHNICAL INFORMATION

• Model = 6K

• Material  = Steel

• Height = 1000 mm

• Width   = 624 mm

• Color = White

• Number of Columns = 6

• Number of Sections  = 13 Pieces

• Legs Needed If Free Standing = 2 Pieces

• Diameter of Vertical Pipes = 25 mm

• Maximum Working Pressure = 10 bar

• Wall to Center of Inlet = 149 mm

• Wall Projection Distance  = 264 mm

• Section Width    = 46 mm

• Radiator Depth  = 230 mm

• Radiator Thread Dimension     = 1/2"

• Water Volume    = 36,4 lt

• Radiator Weight    = 57,2 kg

TAPPING OPTIONS

• Standard Entry1    = 930 mm

• Standard Entry Cross = 714 mm

• Sides / Bottom Right-Left  = 714 mm

• Bottom Middle Entrance = 50 mm

• Bottom Right Entrance  = 50 mm

• Bottom Left Entrance   = 50 mm

Heat Output

Kcal / h

• Heat Output 75/65-20° ∆t=50°C = 2114 Kcal/h

• Heat Output 90/70-20° ∆t=60°C = 2664 Kcal/h

• Heat Output 55/45-20° ∆t=30°C = 1083 Kcal/h

Watts

• Heat Output 75/65-20° ∆t=50°C = 2457 Watt

• Heat Output 90/70-20° ∆t=60°C = 3096 Watt

• Heat Output 55/45-20° ∆t=30°C = 1258 Watt

Btu

• Heat Output 75/65-20° ∆t=50°C = 8384 Btu

• Heat Output 90/70-20° ∆t=60°C = 10564 Btu

• Heat Output 55/45-20° ∆t=30°C = 4293 Btu
