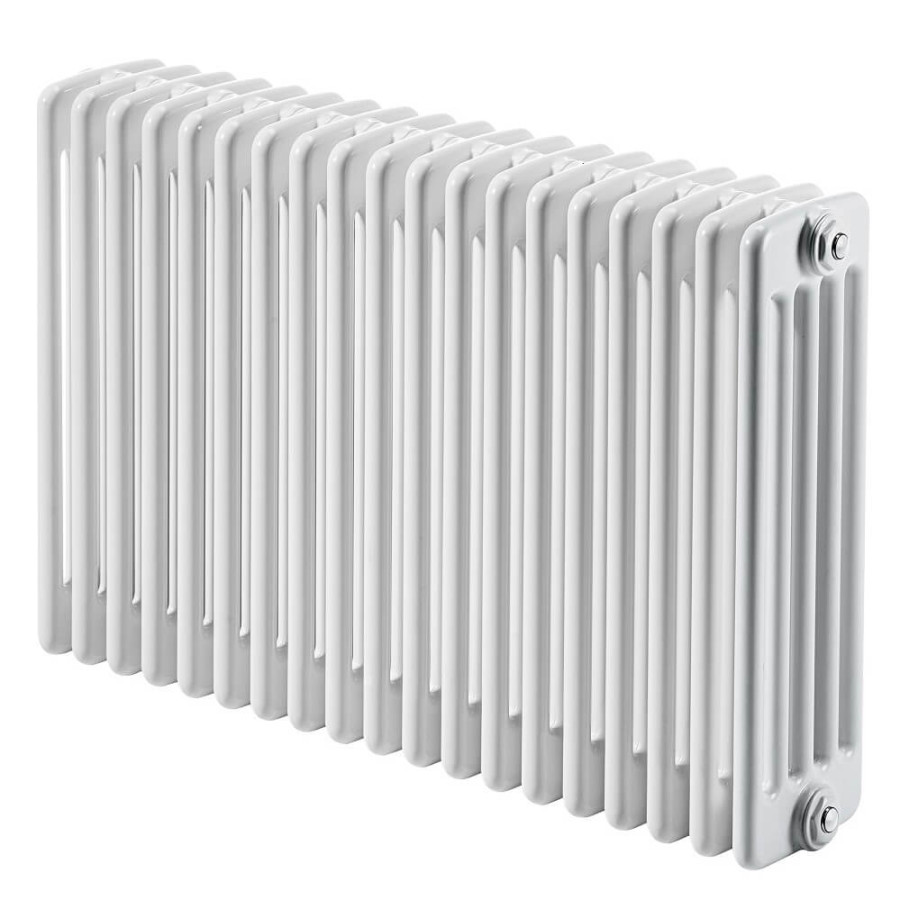

Dl 5 Column Radiator 900x992 White

COLUMN RADIATOR TECHNICAL INFORMATION

• Model = 5K

• Material  = Steel

• Height = 900 mm

• Width   = 992 mm

• Color = White

• Number of Columns = 5

• Number of Sections  = 21 Pieces

• Legs Needed If Free Standing = 3 Pieces

• Diameter of Vertical Pipes = 25 mm

• Maximum Working Pressure = 10 bar

• Wall to Center of Inlet = 128,5 mm

• Wall Projection Distance  = 223 mm

• Section Width    = 46 mm

• Radiator Depth  = 189 mm

• Radiator Thread Dimension     = 1/2"

• Water Volume    = 44,1 lt

• Radiator Weight    = 69,3 kg

TAPPING OPTIONS

• Standard Entry1    = 830 mm

• Standard Entry Cross = 1082 mm

• Sides / Bottom Right-Left  = 1082 mm

• Bottom Middle Entrance = 50 mm

• Bottom Right Entrance  = 50 mm

• Bottom Left Entrance   = 50 mm

Heat Output

Kcal / h

• Heat Output 75/65-20° ∆t=50°C = 2547 Kcal/h

• Heat Output 90/70-20° ∆t=60°C = 3210 Kcal/h

• Heat Output 55/45-20° ∆t=30°C = 1305 Kcal/h

Watts

• Heat Output 75/65-20° ∆t=50°C = 2961 Watt

• Heat Output 90/70-20° ∆t=60°C = 3731 Watt

• Heat Output 55/45-20° ∆t=30°C = 1517 Watt

Btu

• Heat Output 75/65-20° ∆t=50°C = 10103 Btu

• Heat Output 90/70-20° ∆t=60°C = 12730 Btu

• Heat Output 55/45-20° ∆t=30°C = 5173 Btu
