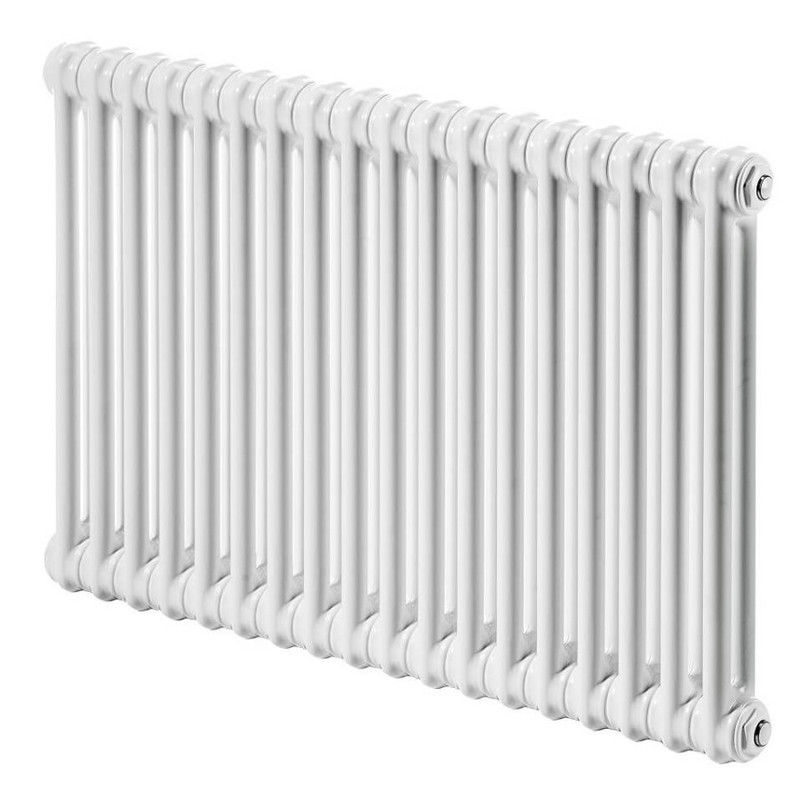

DL 2 Column Radiator 500x394 Special Color Category 2

COLUMN RADIATOR TECHNICAL INFORMATION

• Model = 2K

• Material  = Steel

• Height = 500 mm

• Width   = 394 mm

• Color = Special Color Category 2

• Number of Columns = 2

• Number of Sections  = 8 Pieces

• Legs Needed If Free Standing = 2 Pieces

• Diameter of Vertical Pipes = 25 mm

• Maximum Working Pressure = 10 bar

• Wall to Center of Inlet = 67 mm

• Wall Projection Distance  = 100 mm

• Section Width    = 46 mm

• Radiator Depth  = 66 mm

• Radiator Thread Dimension     = 1/2"

• Water Volume    = 4,8 lt

• Radiator Weight    = 6,4 kg

TAPPING OPTIONS

• Standard Entry1    = 430 mm

• Standard Entry Cross = 484 mm

• Sides / Bottom Right-Left  = 484 mm

• Bottom Middle Entrance = 50 mm

• Bottom Right Entrance  = 50 mm

• Bottom Left Entrance   = 50 mm

Heat Output

Kcal / h

• Heat Output 75/65-20° ∆t=50°C = 262 Kcal/h

• Heat Output 90/70-20° ∆t=60°C = 331 Kcal/h

• Heat Output 55/45-20° ∆t=30°C = 135 Kcal/h

Watts

• Heat Output 75/65-20° ∆t=50°C = 304 Watt

• Heat Output 90/70-20° ∆t=60°C = 384 Watt

• Heat Output 55/45-20° ∆t=30°C = 156 Watt

Btu

• Heat Output 75/65-20° ∆t=50°C = 1038 Btu

• Heat Output 90/70-20° ∆t=60°C = 1308 Btu

• Heat Output 55/45-20° ∆t=30°C = 532 Btu
