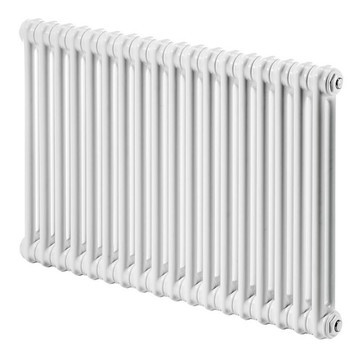

DL 2 Column Radiator 1800x302 Special Color Category 2

COLUMN RADIATOR TECHNICAL INFORMATION

• Model = 2K

• Material  = Steel

• Height = 1800 mm

• Width   = 302 mm

• Color = Special Color Category 2

• Number of Columns = 2

• Number of Sections  = 6 Pieces

• Legs Needed If Free Standing = 2 Pieces

• Diameter of Vertical Pipes = 25 mm

• Maximum Working Pressure = 10 bar

• Wall to Center of Inlet = 67 mm

• Wall Projection Distance  = 100 mm

• Section Width    = 46 mm

• Radiator Depth  = 66 mm

• Radiator Thread Dimension     = 1/2"

• Water Volume    = 9,6 lt

• Radiator Weight    = 15,6 kg

TAPPING OPTIONS

• Standard Entry1    = 1730 mm

• Standard Entry Cross = 392 mm

• Sides / Bottom Right-Left  = 392 mm

• Bottom Middle Entrance = 50 mm

• Bottom Right Entrance  = 50 mm

• Bottom Left Entrance   = 50 mm

Heat Output

Kcal / h

• Heat Output 75/65-20° ∆t=50°C = 661 Kcal/h

• Heat Output 90/70-20° ∆t=60°C = 833 Kcal/h

• Heat Output 55/45-20° ∆t=30°C = 339 Kcal/h

Watts

• Heat Output 75/65-20° ∆t=50°C = 768 Watt

• Heat Output 90/70-20° ∆t=60°C = 968 Watt

• Heat Output 55/45-20° ∆t=30°C = 394 Watt

Btu

• Heat Output 75/65-20° ∆t=50°C = 2621 Btu

• Heat Output 90/70-20° ∆t=60°C = 3303 Btu

• Heat Output 55/45-20° ∆t=30°C = 1342 Btu
