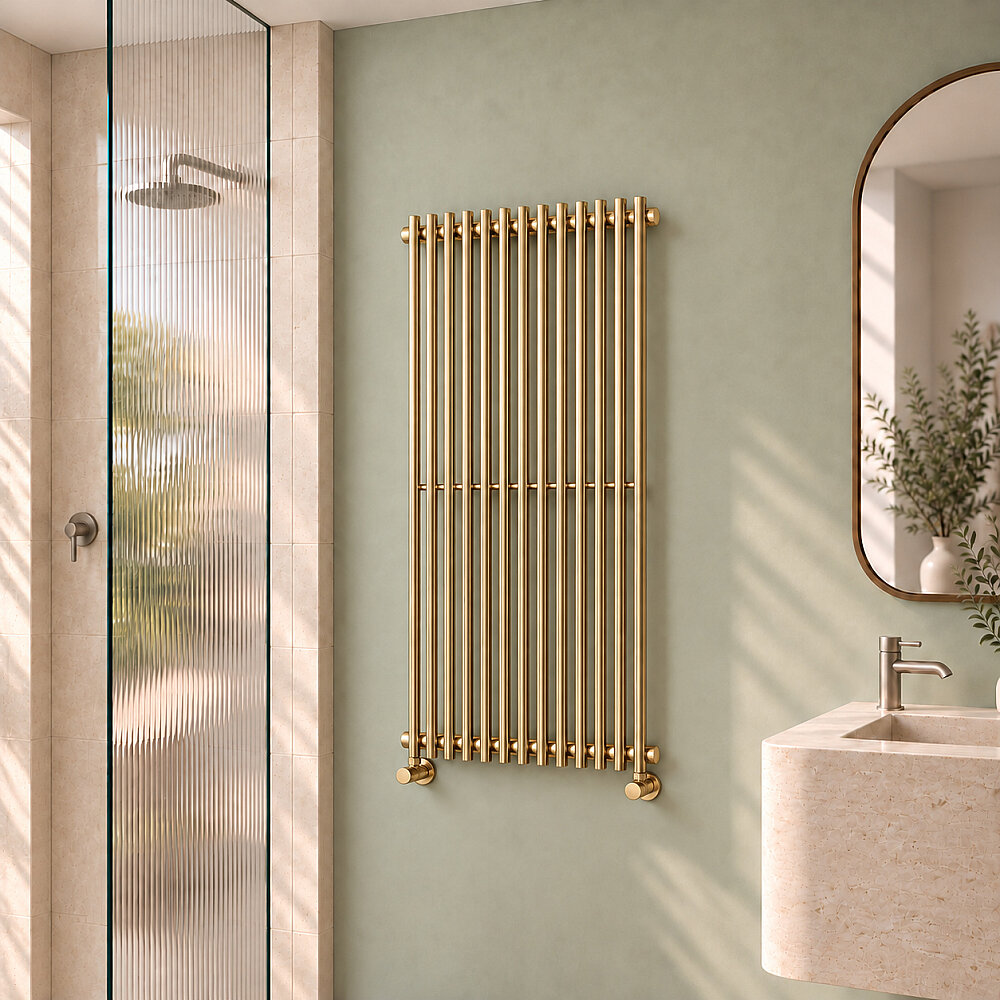

Cook Decorative Towel Rail 550x1400 Gold

DECORATİVE TOWEL WARMERS TECHNICAL INFORMATION

• Model = Cook

• Working system = Boiler, Central Heating System, Heat Pump (Hydronic Systems)

• Material = Steel

• Width = 550 mm

• Height = 1400 mm

• Color/Coating = Altın Renkli

• Tapping Distance = 550+90 mm

• Maximum Working Pressure = 10 bar

• Wall to Center of Inlet = 63 mm

• Wall Projection Distance = 101 mm

• Towel Warmer Thread Dimension = 1/2"

• Water Volume = 9,4 lt

• Weight = 9,5 kg

• Boxed Weight = 11,9 kg

• Box Size = 57x142x7 cm

• Wall Mount Set Type = Metal

• Wall Mount Set Color = Same Color As The Product

• Assembly Set Is Included In The Price,Included in the Box.

• Prices do not include valves pls. refer to page "Valves" to see our range

• Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h

• Heat Output 75/65-20° ?t=50°C = 424 Kcal/h

• Heat Output 90/70-20° ?t=60°C = 535 Kcal/h

• Heat Output 55/45-20° ?t=30°C = 218 Kcal/h

Watts

• Heat Output 75/65-20° ?t=50°C = 493 Watt

• Heat Output 90/70-20° ?t=60°C = 622 Watt

• Heat Output 55/45-20° ?t=30°C = 253 Watt

Btu

• Heat Output 75/65-20° ?t=50°C = 1683 Btu

• Heat Output 90/70-20° ?t=60°C = 2121 Btu

• Heat Output 55/45-20° ?t=30°C = 862 Btu
