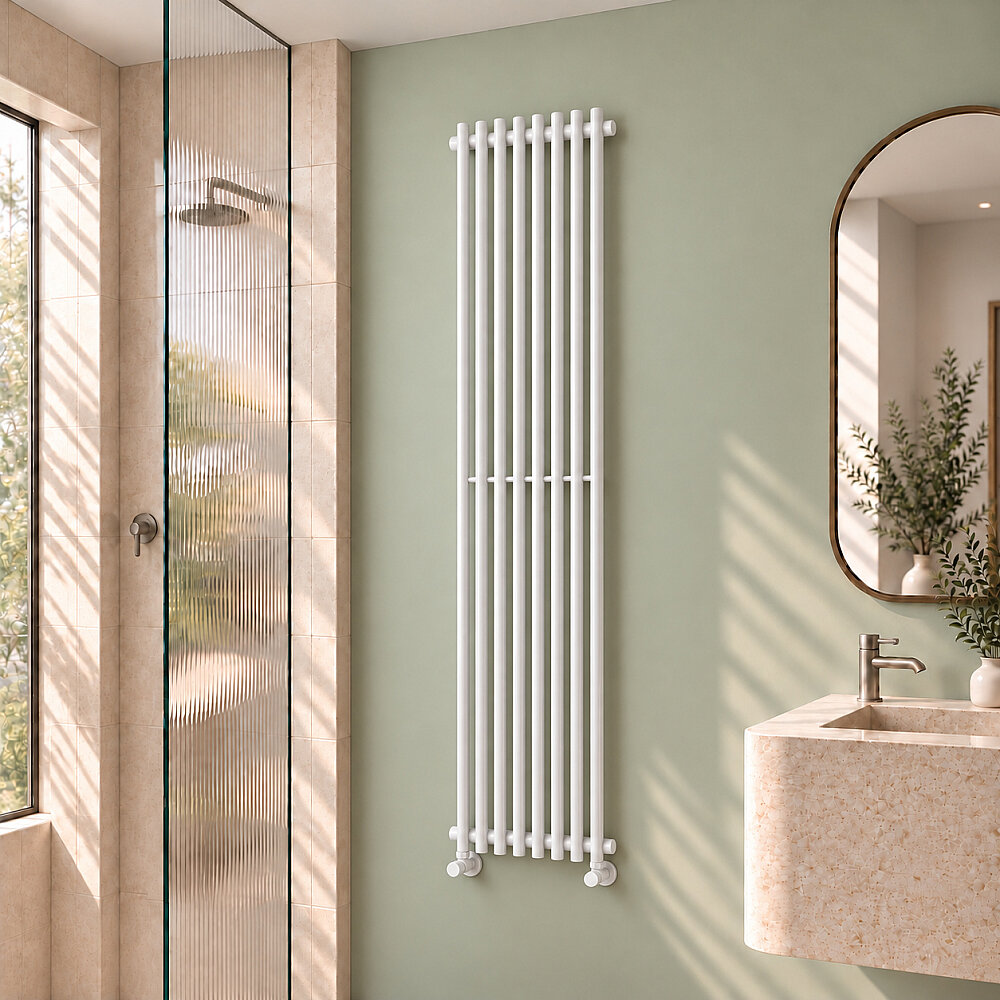

Cook Decorative Towel Rail 340x1800 White

DECORATİVE TOWEL WARMERS TECHNICAL INFORMATION

• Model = Cook

• Working system = Boiler, Central Heating System, Heat Pump (Hydronic Systems)

• Material = Steel

• Width = 340 mm

• Height = 1800 mm

• Color/Coating = Matt White

• Tapping Distance = 340+90 mm

• Maximum Working Pressure = 10 bar

• Wall to Center of Inlet = 63 mm

• Wall Projection Distance = 101 mm

• Towel Warmer Thread Dimension = 1/2"

• Water Volume = 11,5 lt

• Weight = 7,3 kg

• Boxed Weight = 9,5 kg

• Box Size = 36x182x7 cm

• Wall Mount Set Type = Metal

• Wall Mount Set Color = Same Color As The Product

• Assembly Set Is Included In The Price,Included in the Box.

• Prices do not include valves pls. refer to page "Valves" to see our range

• Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h

• Heat Output 75/65-20° ?t=50°C = 478 Kcal/h

• Heat Output 90/70-20° ?t=60°C = 603 Kcal/h

• Heat Output 55/45-20° ?t=30°C = 245 Kcal/h

Watts

• Heat Output 75/65-20° ?t=50°C = 555 Watt

• Heat Output 90/70-20° ?t=60°C = 700 Watt

• Heat Output 55/45-20° ?t=30°C = 285 Watt

Btu

• Heat Output 75/65-20° ?t=50°C = 1894 Btu

• Heat Output 90/70-20° ?t=60°C = 2387 Btu

• Heat Output 55/45-20° ?t=30°C = 970 Btu
