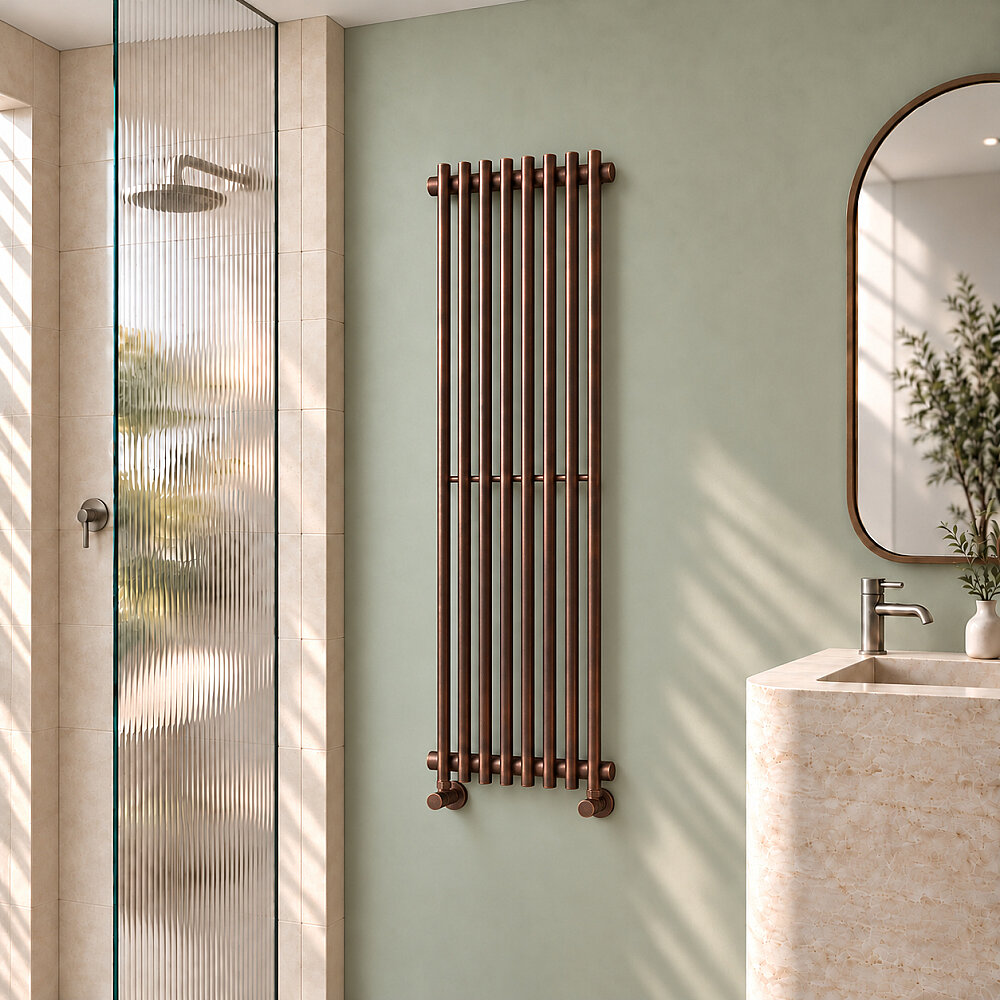

Cook Decorative Towel Rail 340x1400 Antique Copper

DECORATİVE TOWEL WARMERS TECHNICAL INFORMATION

• Model = Cook

• Working system = Boiler, Central Heating System, Heat Pump (Hydronic Systems)

• Material = Steel

• Width = 340 mm

• Height = 1400 mm

• Color/Coating = Bakır Eskitme

• Tapping Distance = 340+90 mm

• Maximum Working Pressure = 10 bar

• Wall to Center of Inlet = 63 mm

• Wall Projection Distance = 101 mm

• Towel Warmer Thread Dimension = 1/2"

• Water Volume = 9,1 lt

• Weight = 6,2 kg

• Boxed Weight = 8,1 kg

• Box Size = 36x142x7 cm

• Wall Mount Set Type = Metal

• Wall Mount Set Color = Same Color As The Product

• Assembly Set Is Included In The Price,Included in the Box.

• Prices do not include valves pls. refer to page "Valves" to see our range

• Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h

• Heat Output 75/65-20° ?t=50°C = 262 Kcal/h

• Heat Output 90/70-20° ?t=60°C = 331 Kcal/h

• Heat Output 55/45-20° ?t=30°C = 135 Kcal/h

Watts

• Heat Output 75/65-20° ?t=50°C = 304 Watt

• Heat Output 90/70-20° ?t=60°C = 384 Watt

• Heat Output 55/45-20° ?t=30°C = 156 Watt

Btu

• Heat Output 75/65-20° ?t=50°C = 1038 Btu

• Heat Output 90/70-20° ?t=60°C = 1308 Btu

• Heat Output 55/45-20° ?t=30°C = 532 Btu
