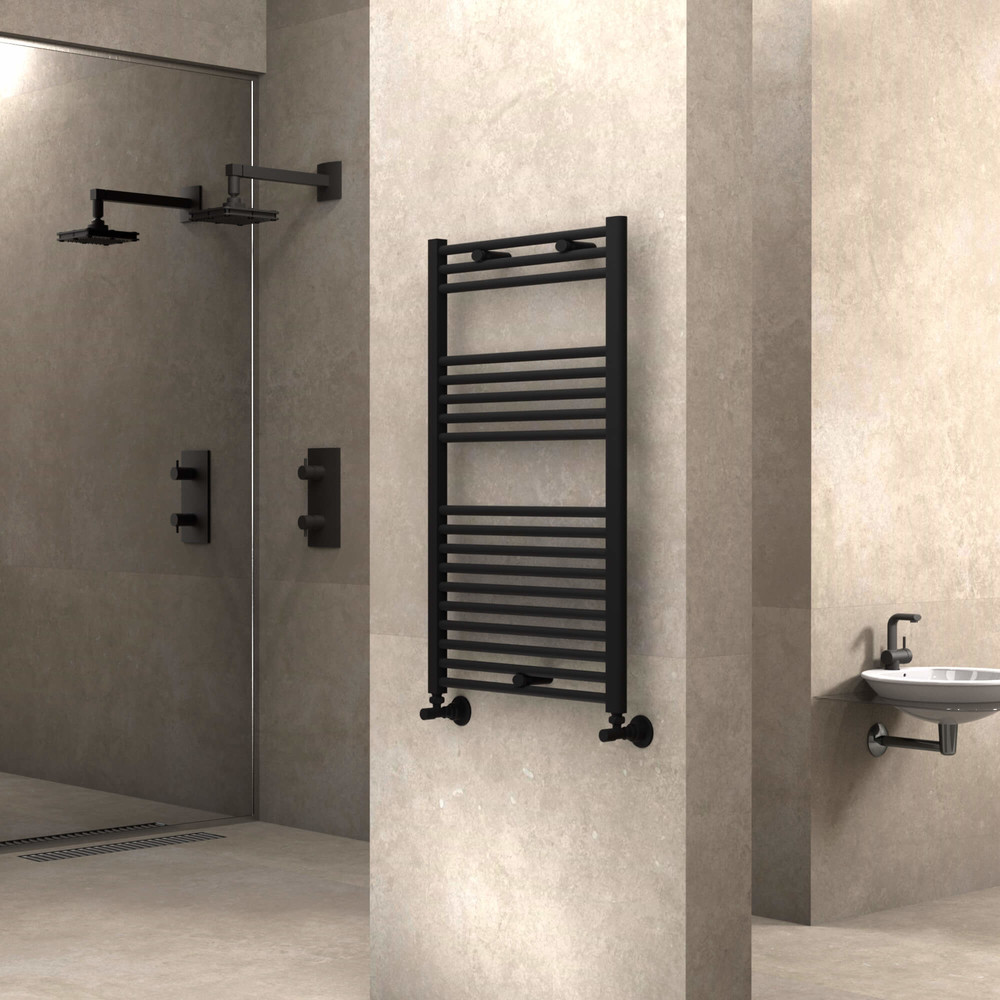

Haiti Towel Warmer 600x1000 Matte Black

TECHNICAL INFORMATION

• Model = Haiti

• Material =Steel

• Width= 600mm

• Height = 1000mm

• Tapping Distance = 555mm

• Color / Coating = Matte Black

• Horizontal Pipe Quantity= 18Pieces

• Horizontal Pipe Dimension = 22mm

• Vertical Collector Size= 30x40mm D Profile

• Maximum Working Pressure= 10bar

• Wall to Center of Inlet= 65-85 mm

• Wall Projection Distance=80-100 mm

• Towel Warmer Thread Dimension=1/2"

• Water Volume= 4,9lt

• Weight= 6,6kg

• Boxed Weight=7,3kg

• Box Size= 62x102x3,8cm

• Assembly Set Is Included In The Price,Included in the Box.





Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h


• Heat Output 75/65-20°?t=50°C = 429Kcal/h

• Heat Output 90/70-20° ?t=60°C= 541Kcal/h

• Heat Output 55/45-20° ?t=30°C= 220Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C= 499Watt

• Heat Output 90/70-20°?t=60°C= 629Watt

• Heat Output 55/45-20°?t=30°C= 256Watt


Btu

• Heat Output 75/65-20°?t=50°C= 1702Btu

• Heat Output 90/70-20°?t=60°C= 2145Btu

• Heat Output 55/45-20°?t=30°C= 872Btu
