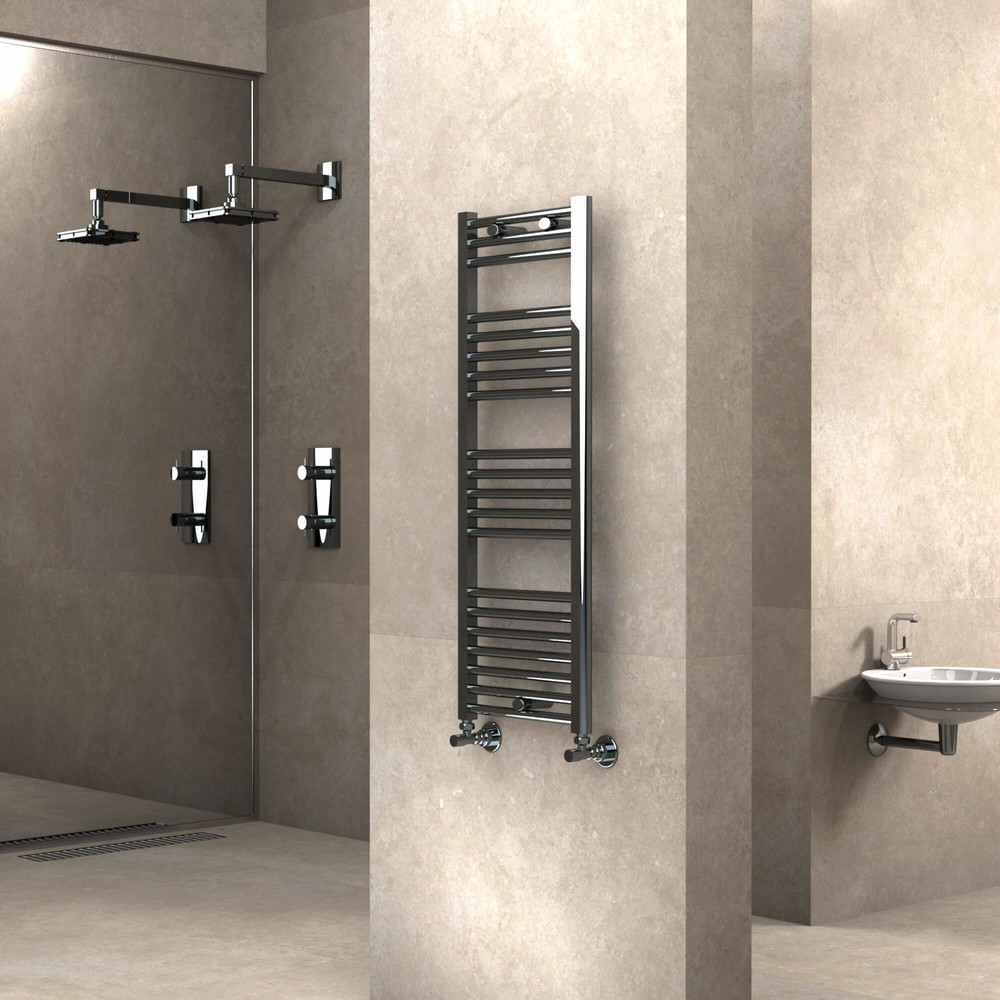

Haiti Towel Warmer 400x1100 Chrome

TECHNICAL INFORMATION

• Model = Haiti

• Material =Steel

• Width= 400mm

• Height = 1100mm

• Tapping Distance = 355mm

• Color / Coating = Chrome

• Horizontal Pipe Quantity= 20Pieces

• Horizontal Pipe Dimension = 22mm

• Vertical Collector Size= 30x40mm D Profilee

• Maximum Working Pressure= 10bar

• Wall to Center of Inlet= 65-85 mm

• Wall Projection Distance=80-100 mm

• Towel Warmer Thread Dimension=1/2"

• Water Volume= 4,1lt

• Weight= 5,6kg

• Boxed Weight=6,2kg

• Box Size= 42x112x3,8cm

• Assembly Set Is Included In The Price,Included in the Box.

• Prices do not include valves pls. refer to page "Valves" to see our range

• Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h


• Heat Output 75/65-20°?t=50°C = 226Kcal/h

• Heat Output 90/70-20° ?t=60°C= 285Kcal/h

• Heat Output 55/45-20° ?t=30°C= 116Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C= 262Watt

• Heat Output 90/70-20°?t=60°C= 331Watt

• Heat Output 55/45-20°?t=30°C= 135Watt


Btu

• Heat Output 75/65-20°?t=50°C= 896Btu

• Heat Output 90/70-20°?t=60°C= 1129Btu

• Heat Output 55/45-20°?t=30°C= 459Btu
